SAAS Gauge Adaptor - RH 80mm Large Gauge Adaptor, HZ GTS Dash (SPEEDO)

Upgrade your Holden HZ GTS dash with this brand new Unicq Parts gauge adapter. Designed to suit SAAS Muscles Series, this classic part comes with a 1-year manufacturer warranty for peace of mind.

The kit includes everything you need for a hassle-free installation and is made in Australia with high-quality ABS material.

This adapter kit is the perfect addition for those looking to enhance the look and functionality of their Holden HZ GTS dash without buying for the rare and expensive original gauges.

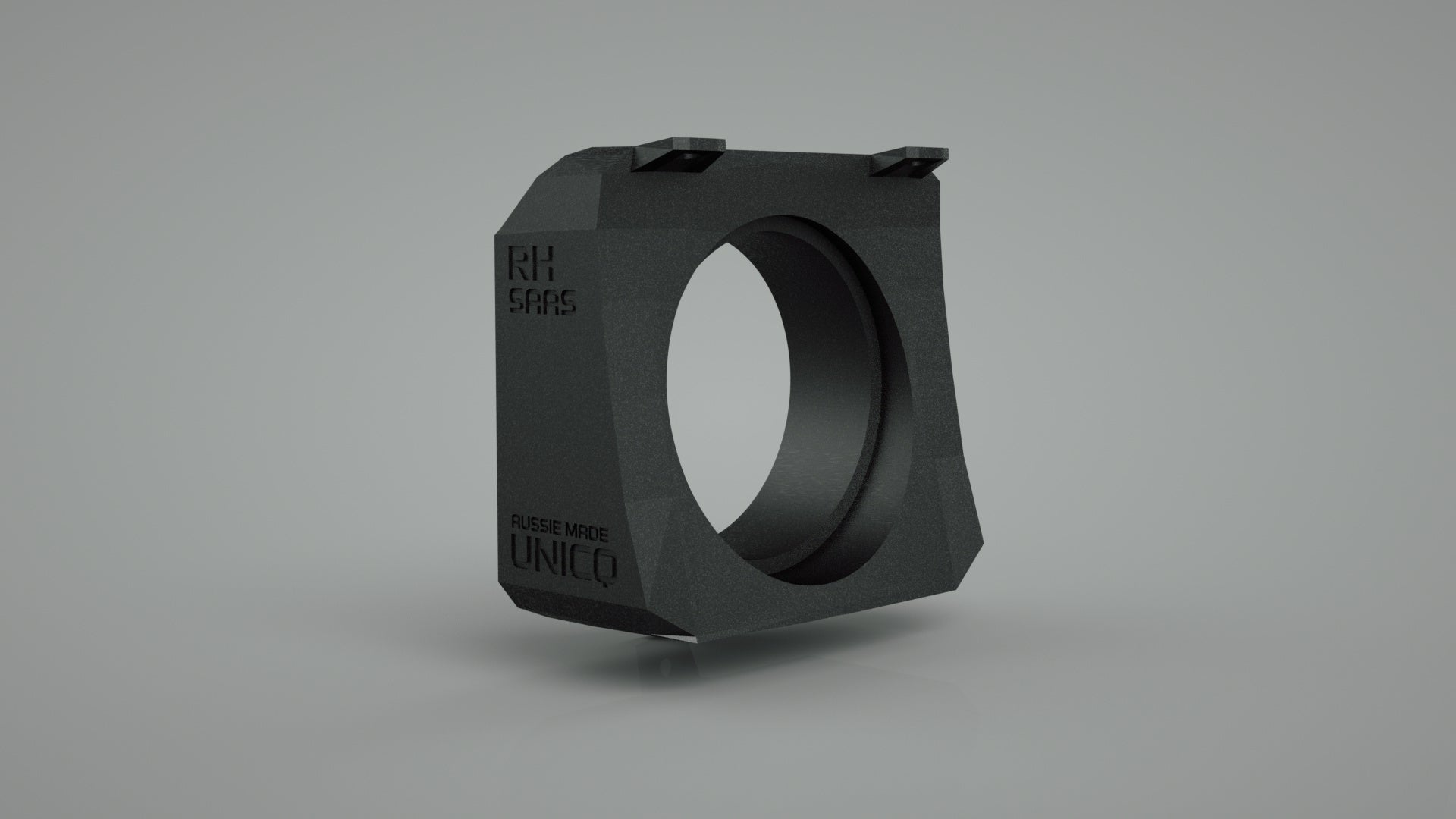

SAAS HZ GTS RETRO GAUGE adapter RH (SPEEDO)

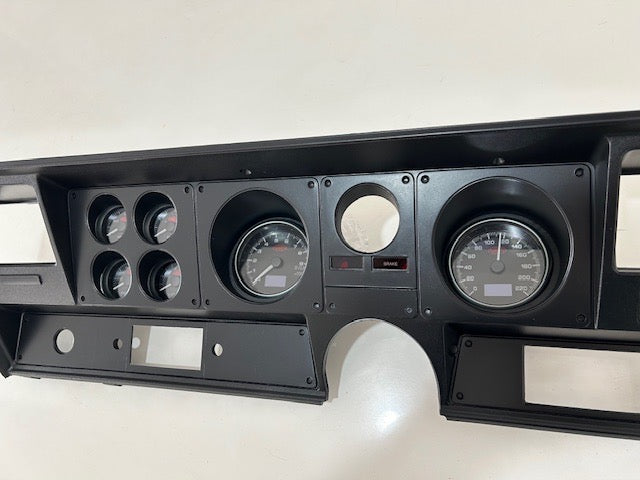

This gives you the full retro gauge adaptor kit to suit the original and aftermarket GTS Dash Facia.

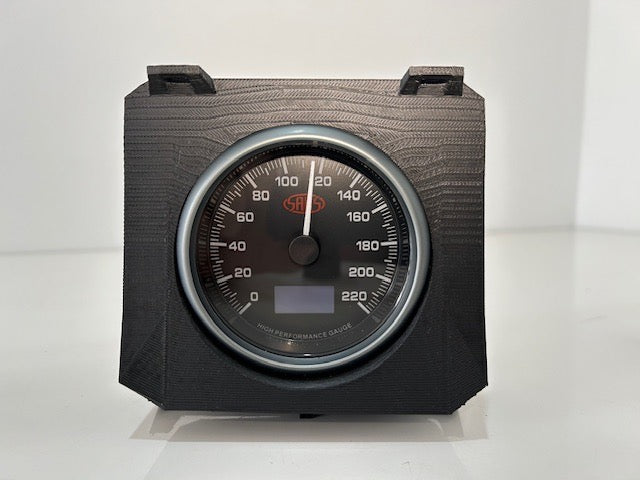

To suit the larger two Gauges 80mm body (3-3/8inch) 3.5inch with a 8mm bezel recess.

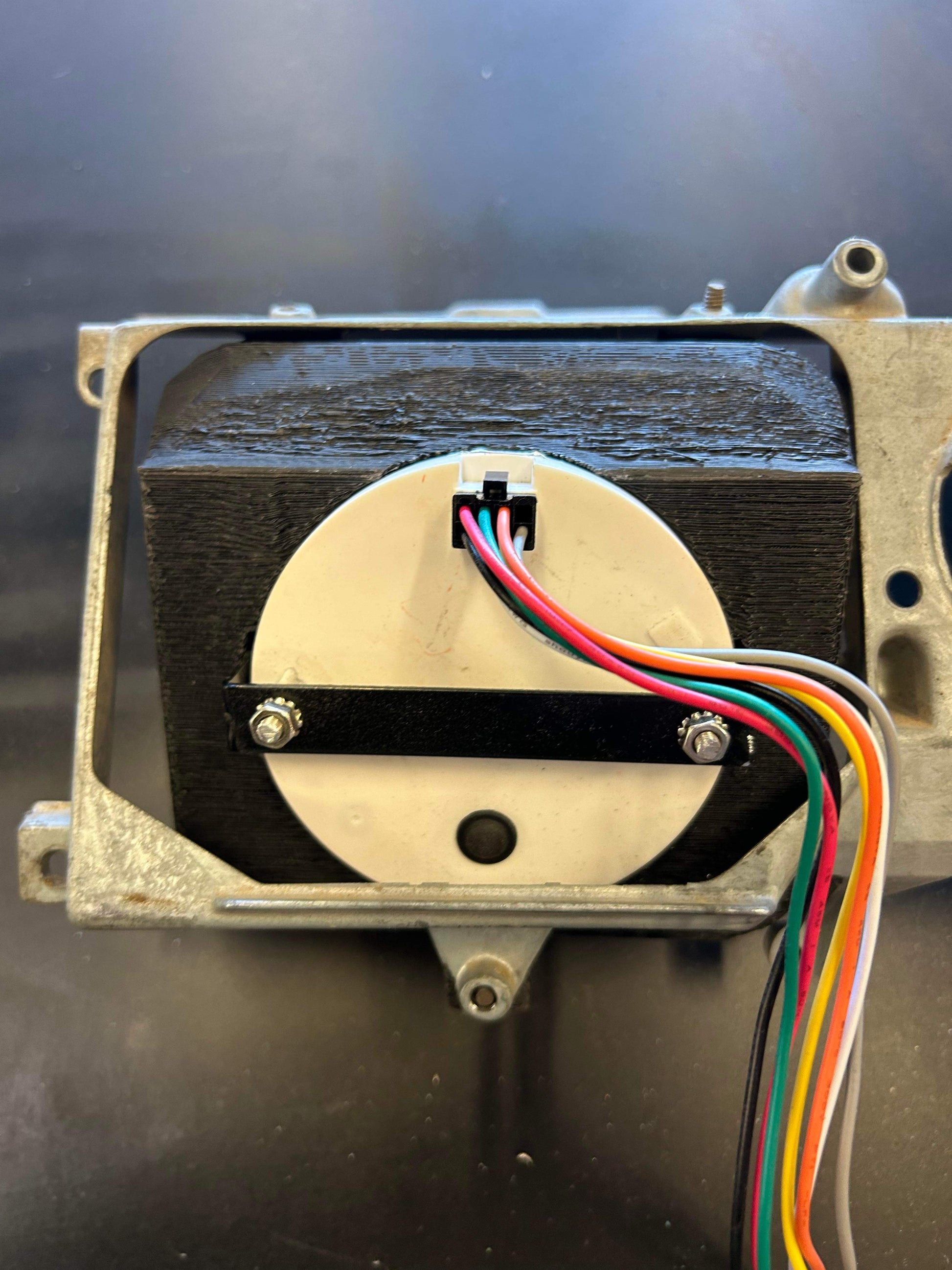

Designed to suit gauges with two screw thread mounts at rear as seen in the examples in the listings.

Not to say you can't use gauges with other screw mounts but you may need to cut support if you choose to use those as they protrude further out the rear.

These adaptors are designed specifically to fit these 2 screw thread gauges and to avoid having to cut the steel facia support bracket to get clearance.

A lot of design and fitment went into these gauges to ensure correct alignment for each gauge window in the GTS facia.

The bezel recess allows for flush mounting of the adaptors so no gaps are around each gauge on the facia. Also oval mount screw holes allow for final mm left and right alignment to get it spot on.

As a result each gauge has slightly different tolerances so must be used as per the left and right embossed labels on each gauge.

Included:

RH Gauge Adaptor 80mm 3-3/8 Inch 3.5 inch body hole with 89mm bezel recess

Please Note: Kit is for the Adaptors only, SAAS gauges are not included as part of the kit.

Please note: Some clearance modification is required to the facia support panel behind the LEFT large gauge to make sure it sits back far enough. This involves cutting out a small section of the frame to alllow the gauge to clear. It is a quick mod and does not alter or compromise the integrity of the facia frame at all. The documentation goes through the process.
