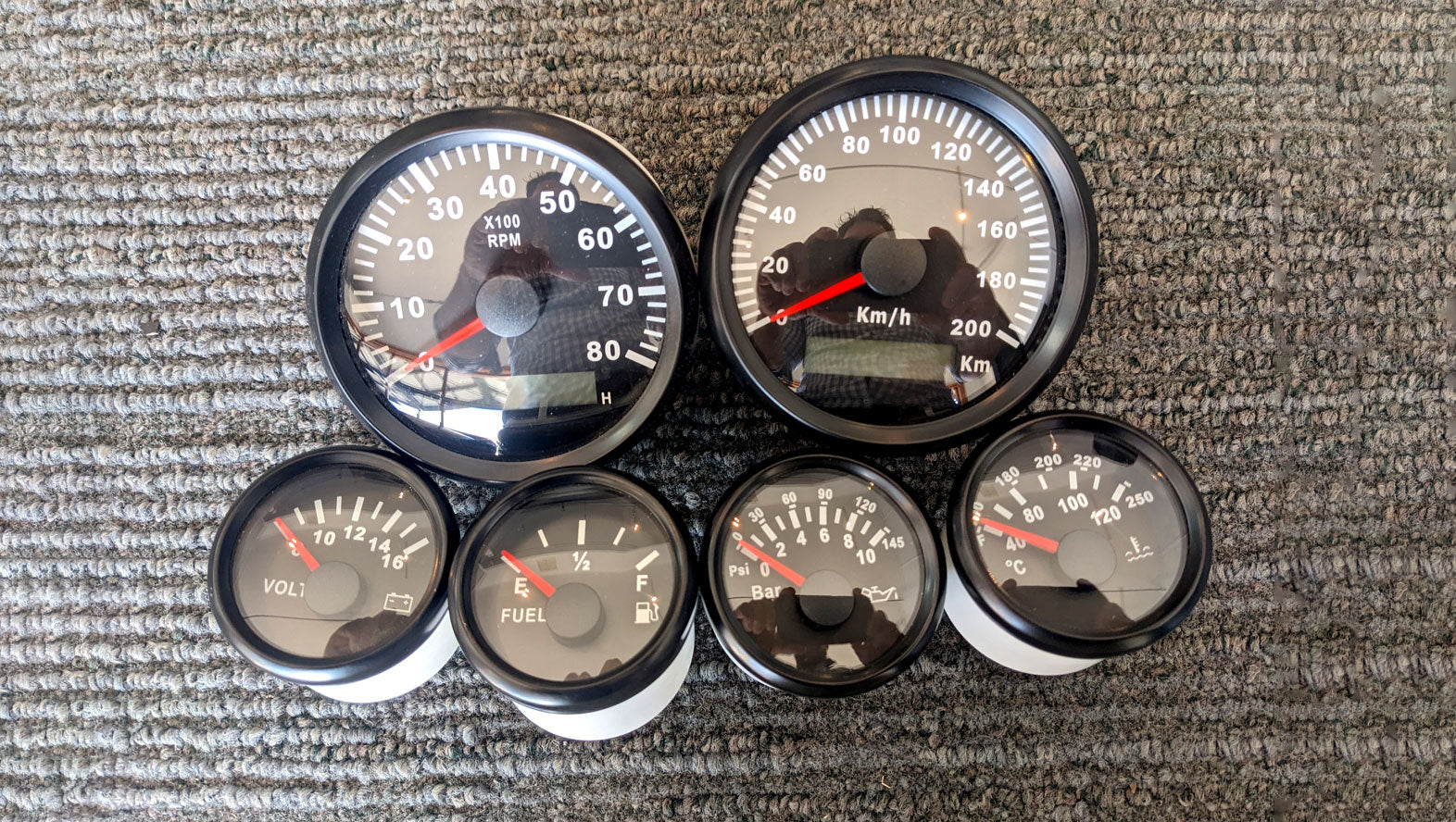

7 GAUGE SET FROM EBAY

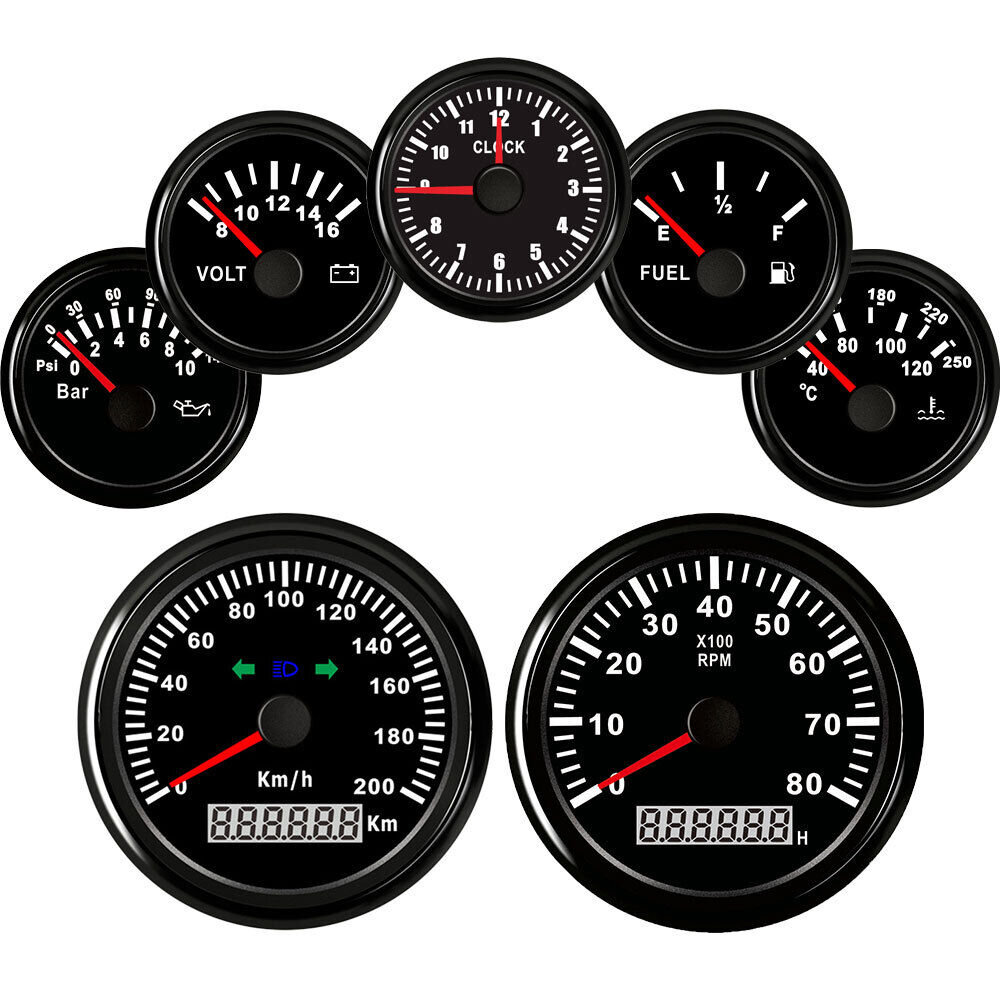

6 Gauge Set 200KM/H Speedo with Signal Lights Tacho Fuel Volts Oil Pressure Temp
GAUGE
Speedometer:
This GPS speedometer dial has the function of displaying left and right turn signals and high beam indicators. Application : motorcycle car truck boat (The mileage is not re-settable, it is like on a car and just keeps adding miles)Operating voltage: 9-32VDCFixing dimension: 85mm (Around 3-3/8 Inch)Bezel:SS316LOperation mode: LCD display Red BacklightIndicating range: 0-200KM/HSignal:GPSWeight:327g
GAUGE

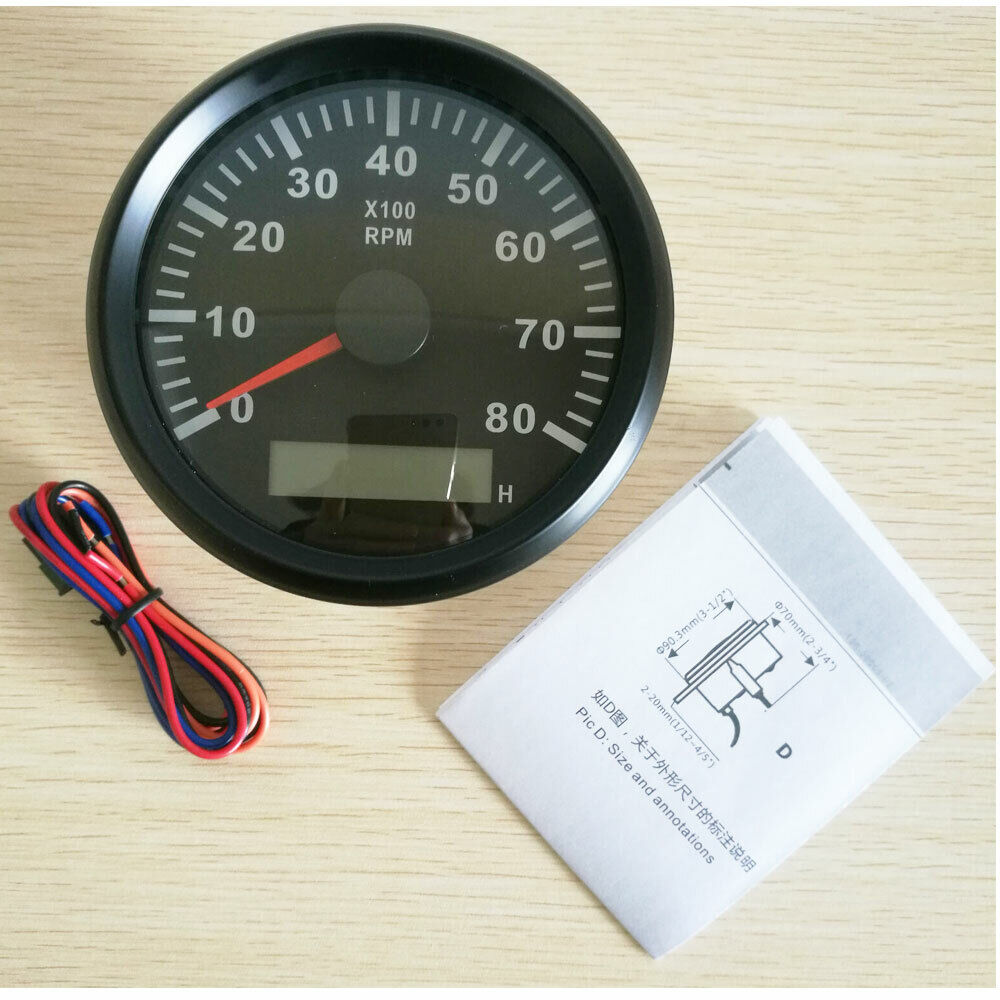

Tachometer:
Indicating range: 0-8000RPMOperation mode: LCD display Red BacklightDescription: Magnet Movement GaugeWeight:240gTouch-sense button to change the setup parameters.Easy setup for pulse/rev.Accept all input pulse signalsYou should connect this tachometer to "W"terminal of alternator, speed sender, ECU, hei distributor. ect. Odometer can be set to a specific number according to your needs such as mileage is set to 1897, but it costs extra funds, please contact us for more details
GAUGES

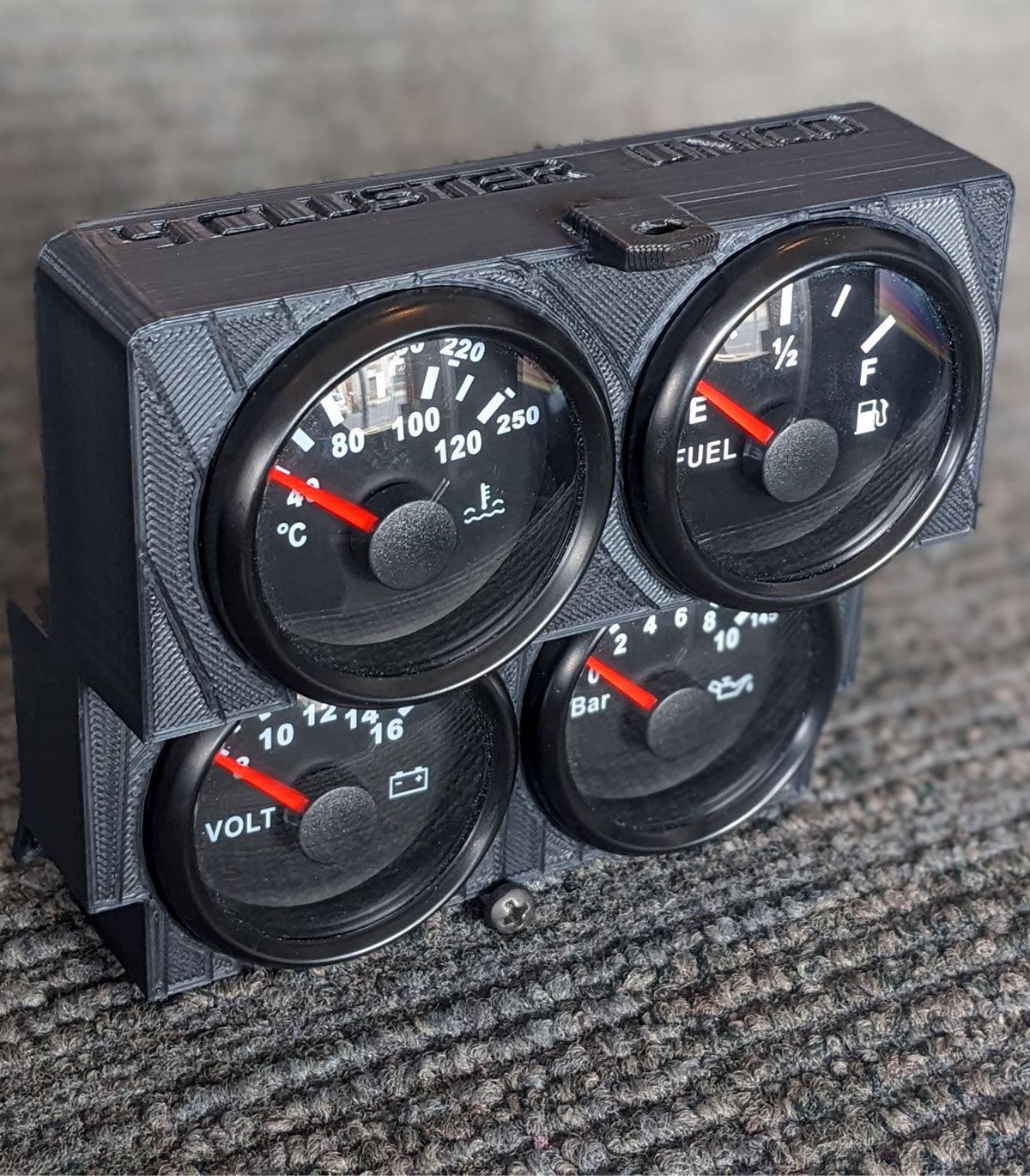

4 Cluster Gauges:
Operating voltage: 9-32VDCFixing dimension: 52mm2-1/16.Style: stainless Steel PlateBackground Color: BlackBacklight : RedItem weight of one piece: 130g
Input ranges:Oil pressure: 10-184ohms, show 0-145 PSIFuel level: 10-73 ohms, Empty - Full . Temp: 287.4-22.4 ohms , show 100-250 FVolt: 8-16V
