AUTOMETER - 4 Gauge Cluster HZ GTS Dash

AUTOMETER 4 Gauge Cluster HZ GTS Adapter

This gives you the 4 Gauge adaptor to suit the original and aftermarket GTS Dash Facia to suit HX, HJ, HZ and WB models.

Please measure and check your Autometer gauge specs to make sure they match the kit specifications for fitment. Autometer have a large amount of gauge types and some have different bezel sizes.

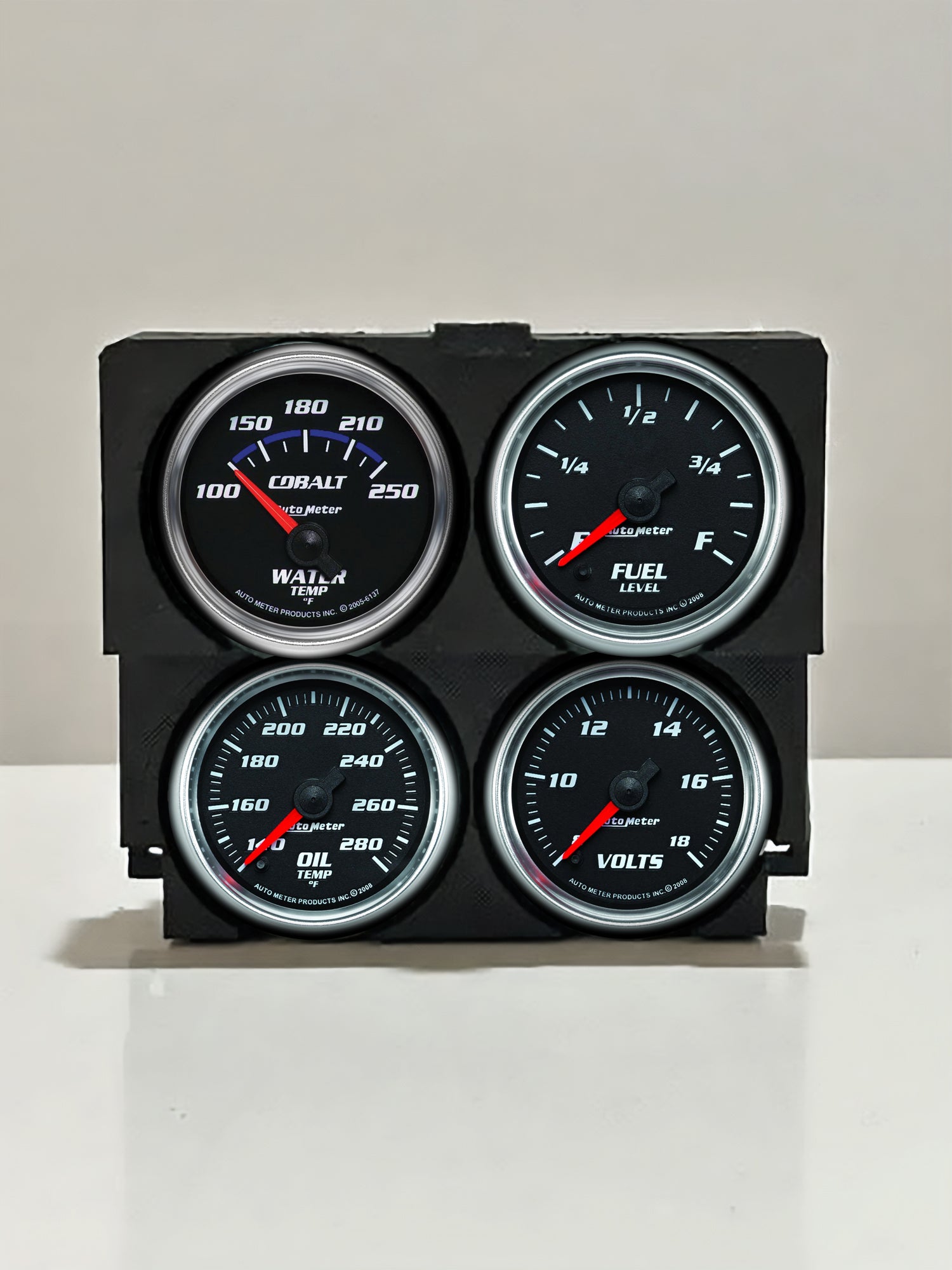

4 GAUGE CLUSTER, OIL, WATER, OIL AND FUEL

4 cluster Adaptor suits small Gauges 52mm body (2 1/16Inch) with 56.5MM Bezel Diameter and 10mm Bexel Depth
Traditionally the Oil, Temp, Fuel and Battery in the original GTS cluster.

FITMENT

Designed to suit gauges with two screw thread mounts at rear as seen in the examples in the listings.

These adaptors are designed specifically to fit the 2 screw thread style mounts at rear and come with specific locking brackets to allow fitment inside the facia support.
The supplied Autometer mounting brackets will not fit and have to be removed in order to mount the gauges in the adaptor.

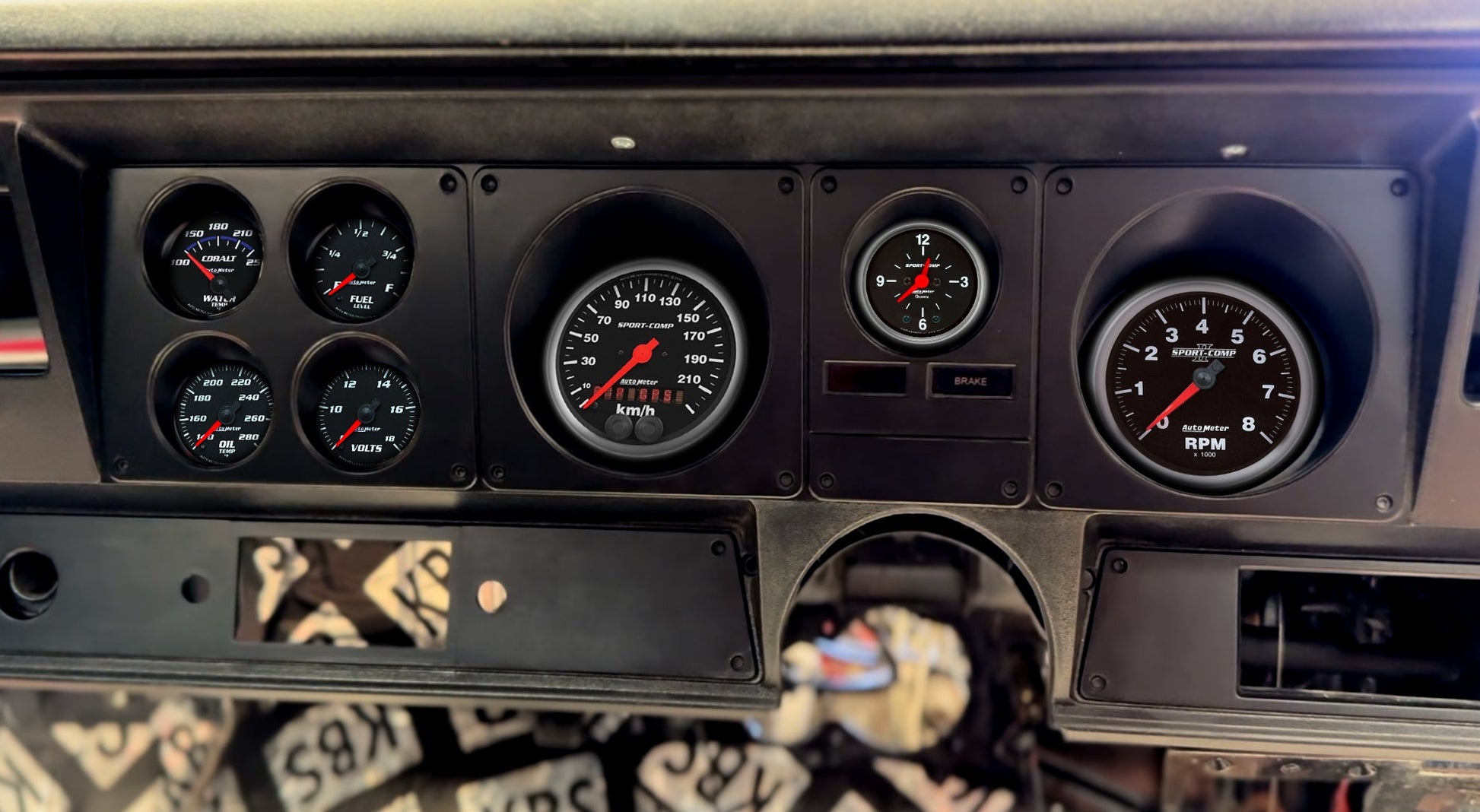

A lot of design and fitment went into these gauges to ensure correct alignment for each gauge window in the GTS facia.

The bezel recess allows for flush mounting of the adaptors so no gaps are around each gauge on the facia. Also oval mount screw holes allow for final mm left and right alignment to get it spot on.

Visit online listing here at Unicq Parts

Included:

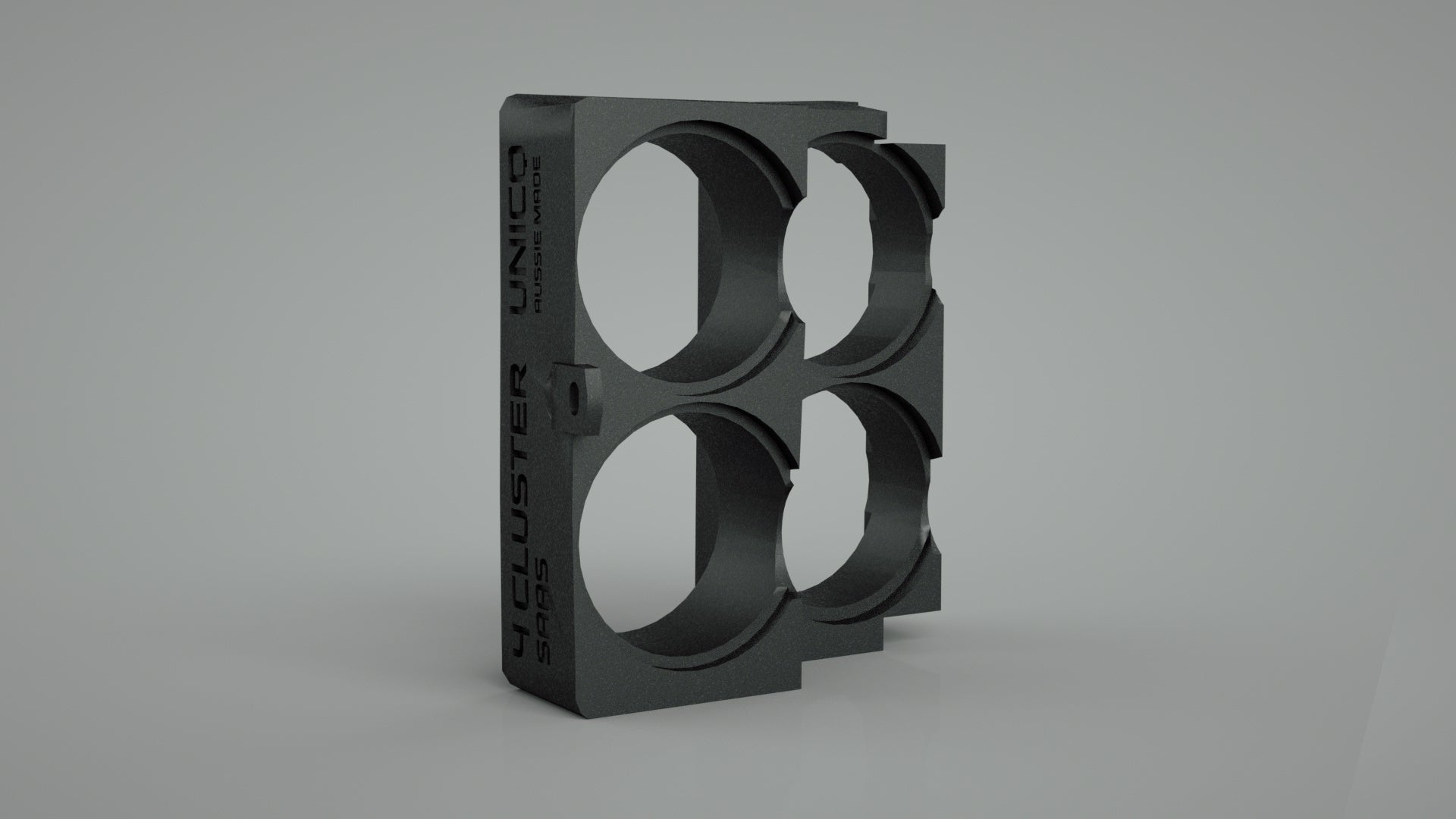

4 Gauge Cluster Housing Adaptor 52mm with 57mm Bezel diameter, 10mm Bezel Depth

4 Gauge Cluster Top and Bottom Gauge Alignment/Locking Brackets

NOTE: Will require minor shaving modifications to screw mounts to allow gauge bodies to fit inside facia support panel.
