AUTOMETER HZ GTS GAUGE adapter kit
This gives you the full retro gauge adaptor kit to suit the original and aftermarket GTS Dash Facia to suit HX, HJ, HZ and WB models.
Please measure and check your Autometer gauge specs to make sure they match the kit specifications for fitment. Autometer have a large amount of gauge types and some have different bezel sizes.

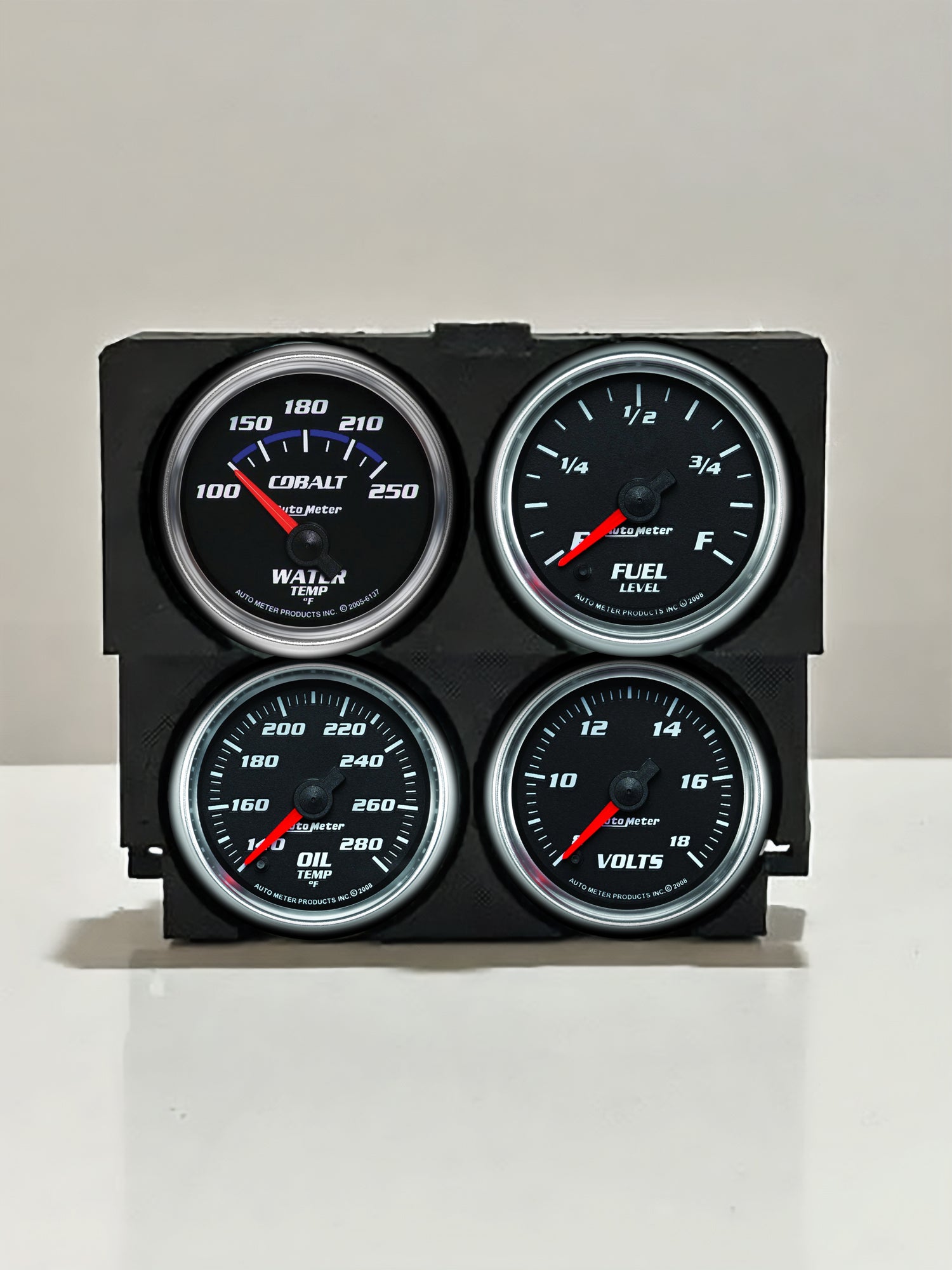

4 GAUGE CLUSTER, OIL, WATER, OIL AND FUEL
4 cluster Adaptor suits small Gauges 52mm body (2 1/16Inch) with 56.5MM Bezel Diameter and 10mm Bexel Depth
Traditionally the Oil, Temp, Fuel and Battery in the original GTS cluster.
LARGE GAUGES (SPEEDO AND RPM)

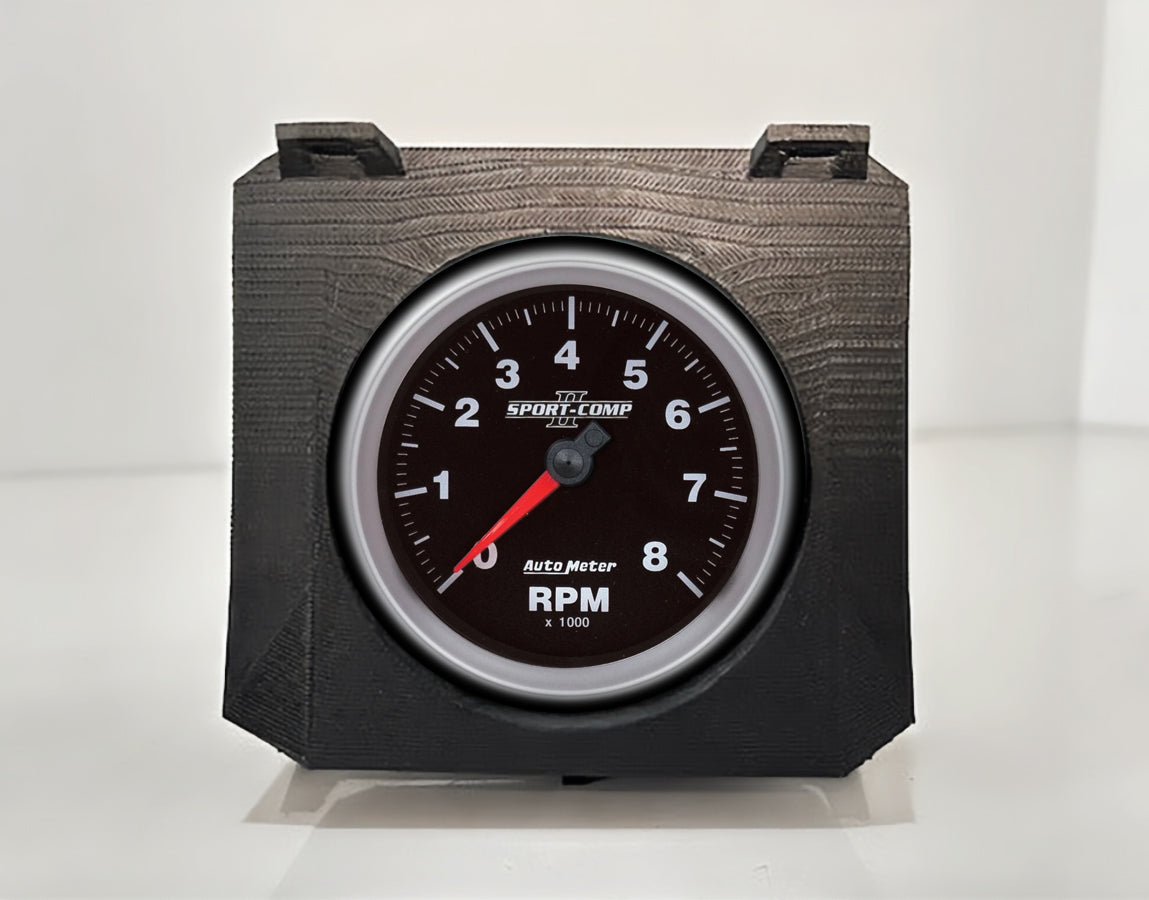

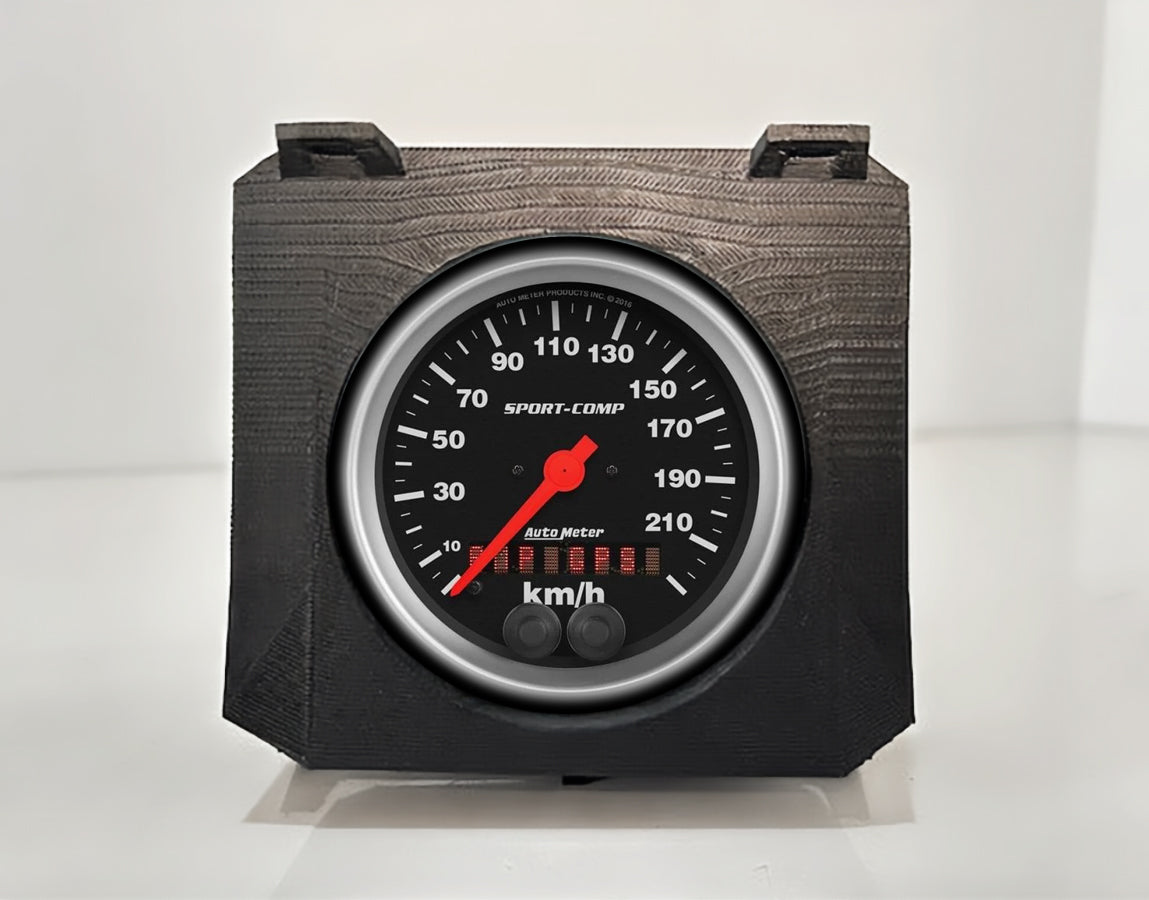

To suit the larger two Gauges 85mm body (3-3/8inch) with a 97mm bezel diameter and 19mm Bezel depth.
CLOCK MOUNT ADAPTOR
Clock Adaptor suits small Gauges 52mm body (2 1/16Inch) with 56.5MM Bezel Diameter and 10mm Bexel Depth. Mounts directly to GTS Facia screw points like factory clock.
FITMENT
Designed to suit gauges with two screw thread mounts at rear as seen in the examples in the listings.
These adaptors are designed specifically to fit the 2 screw thread style mounts at rear and come with specific locking brackets to allow fitment inside the facia support.
The supplied Autometer mounting brackets will not fit and have to be removed in order to mount the gauges in the adaptor.
A lot of design and fitment went into these gauges to ensure correct alignment for each gauge window in the GTS facia.

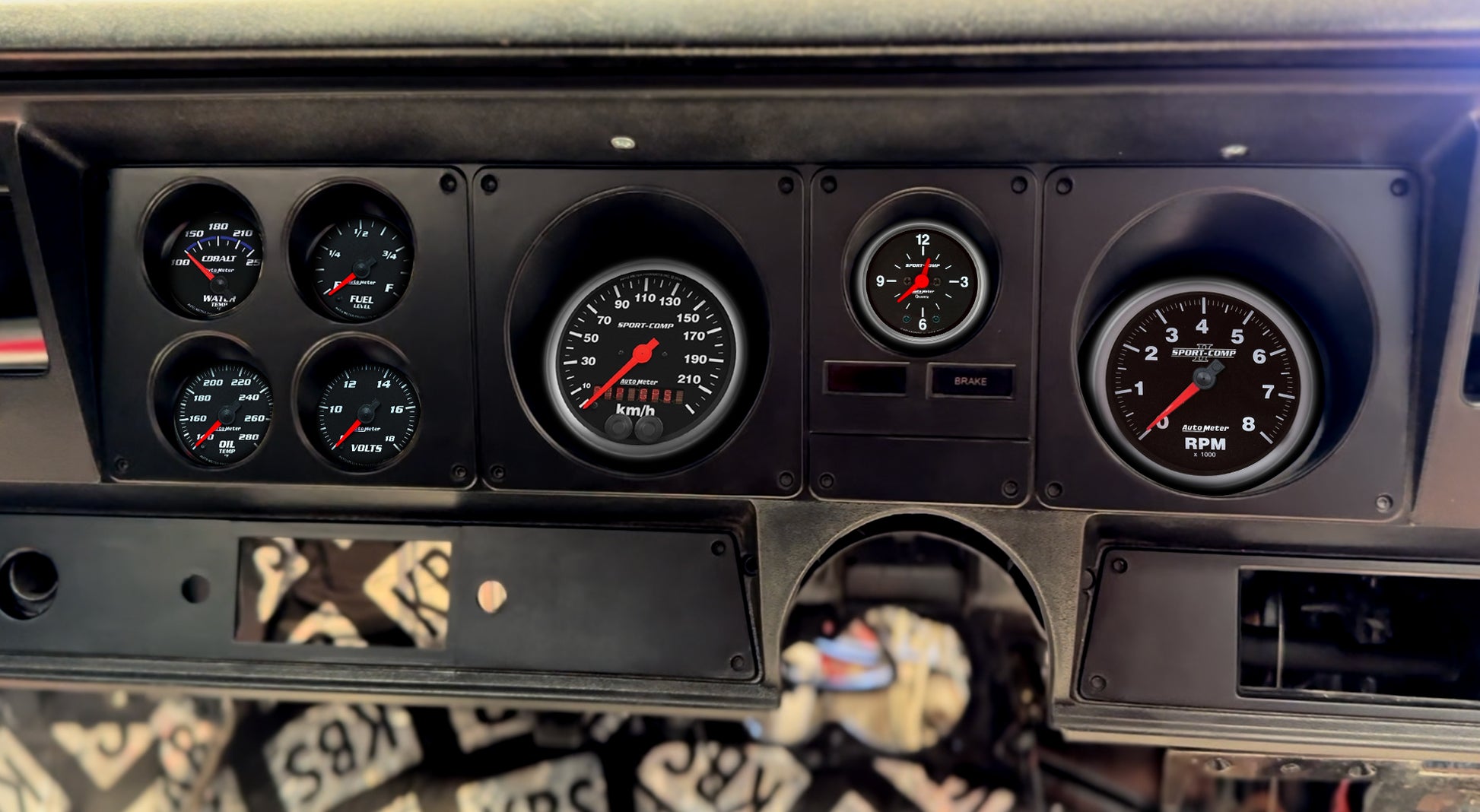

The bezel recess allows for flush mounting of the adaptors so no gaps are around each gauge on the facia. Also oval mount screw holes allow for final mm left and right alignment to get it spot on.
As a result each gauge has slightly different tolerances so must be used as per the left and right embossed labels on each gauge.
Visit online listing here at Unicq Parts

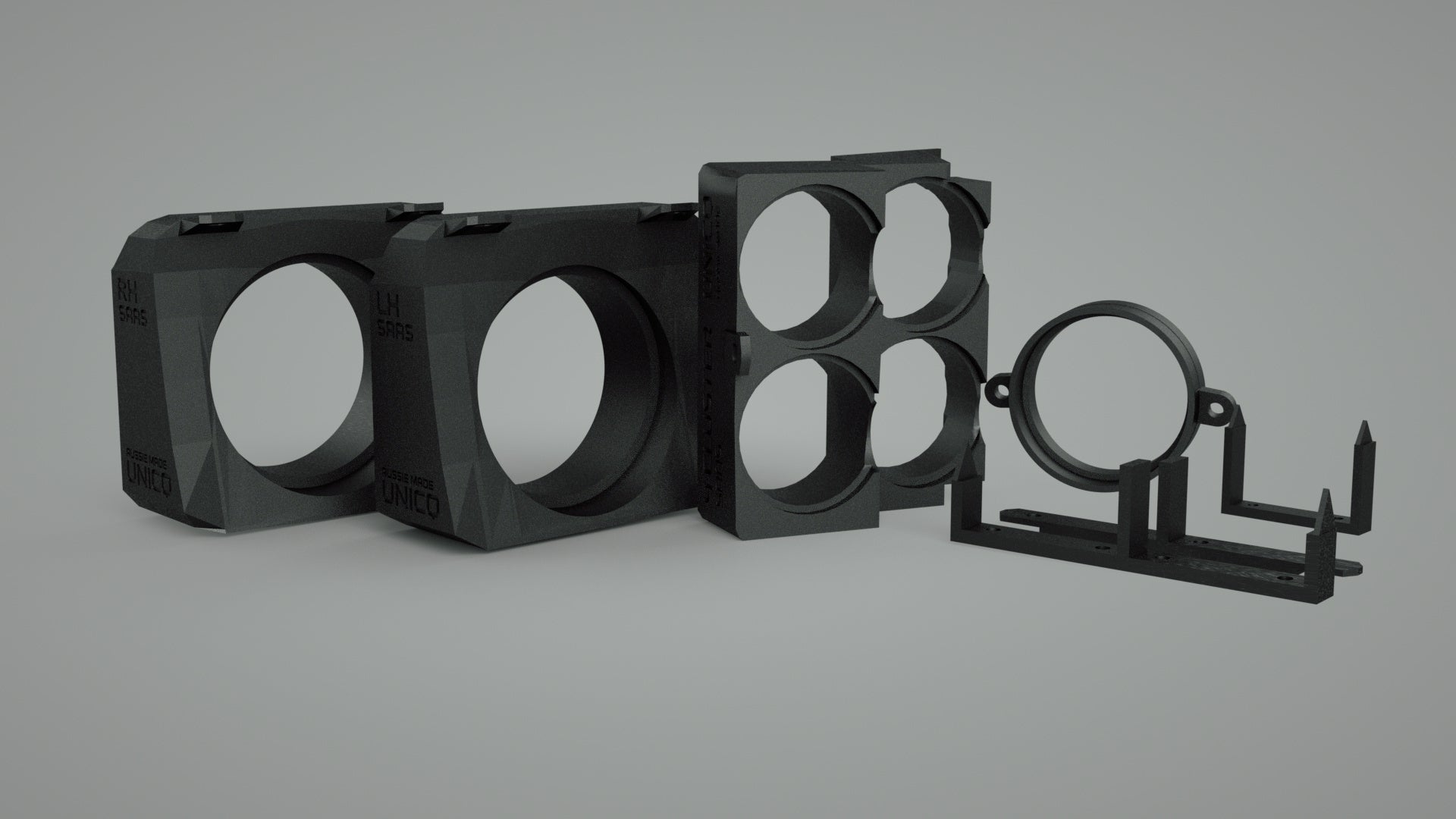

Included:

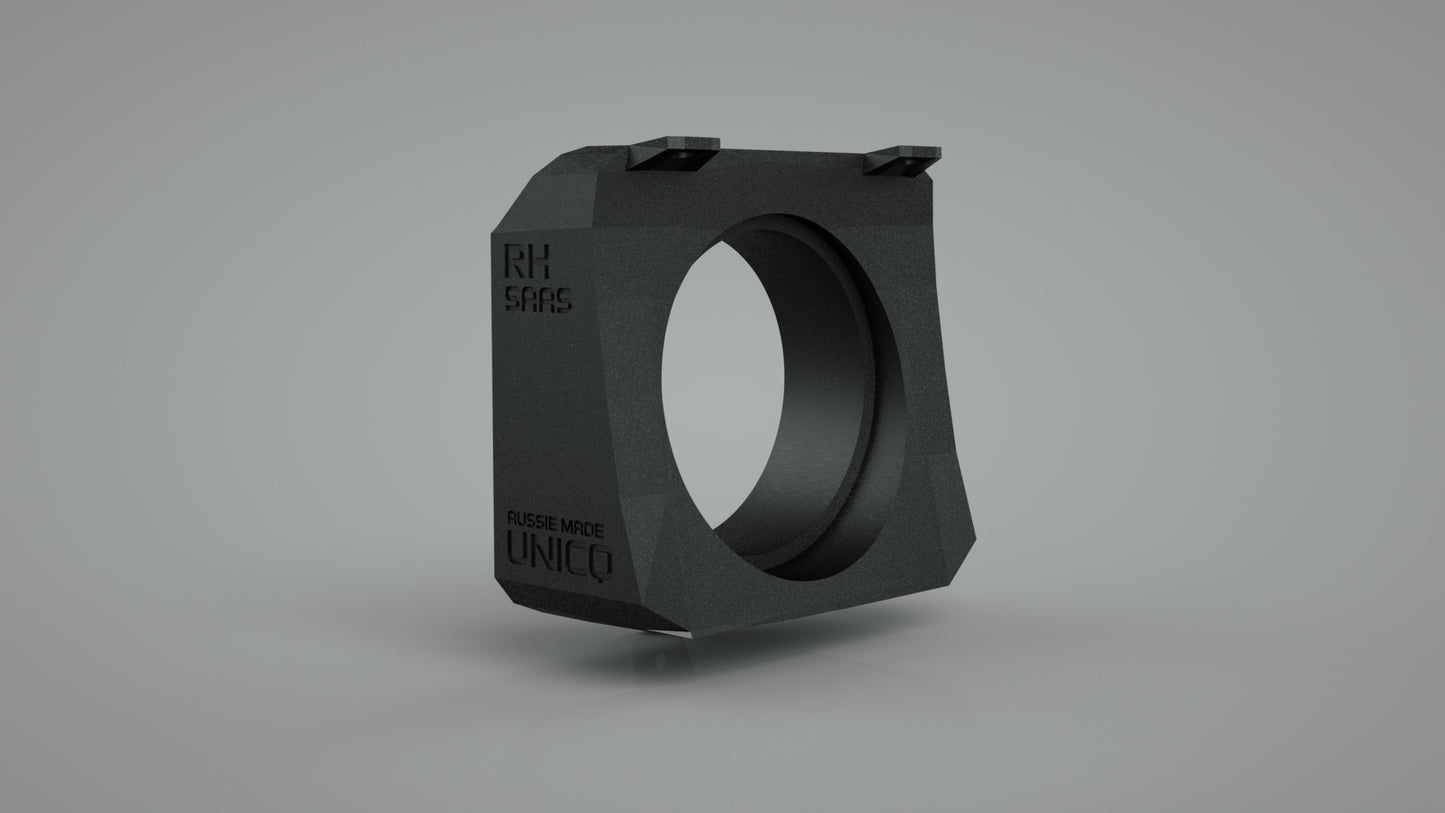

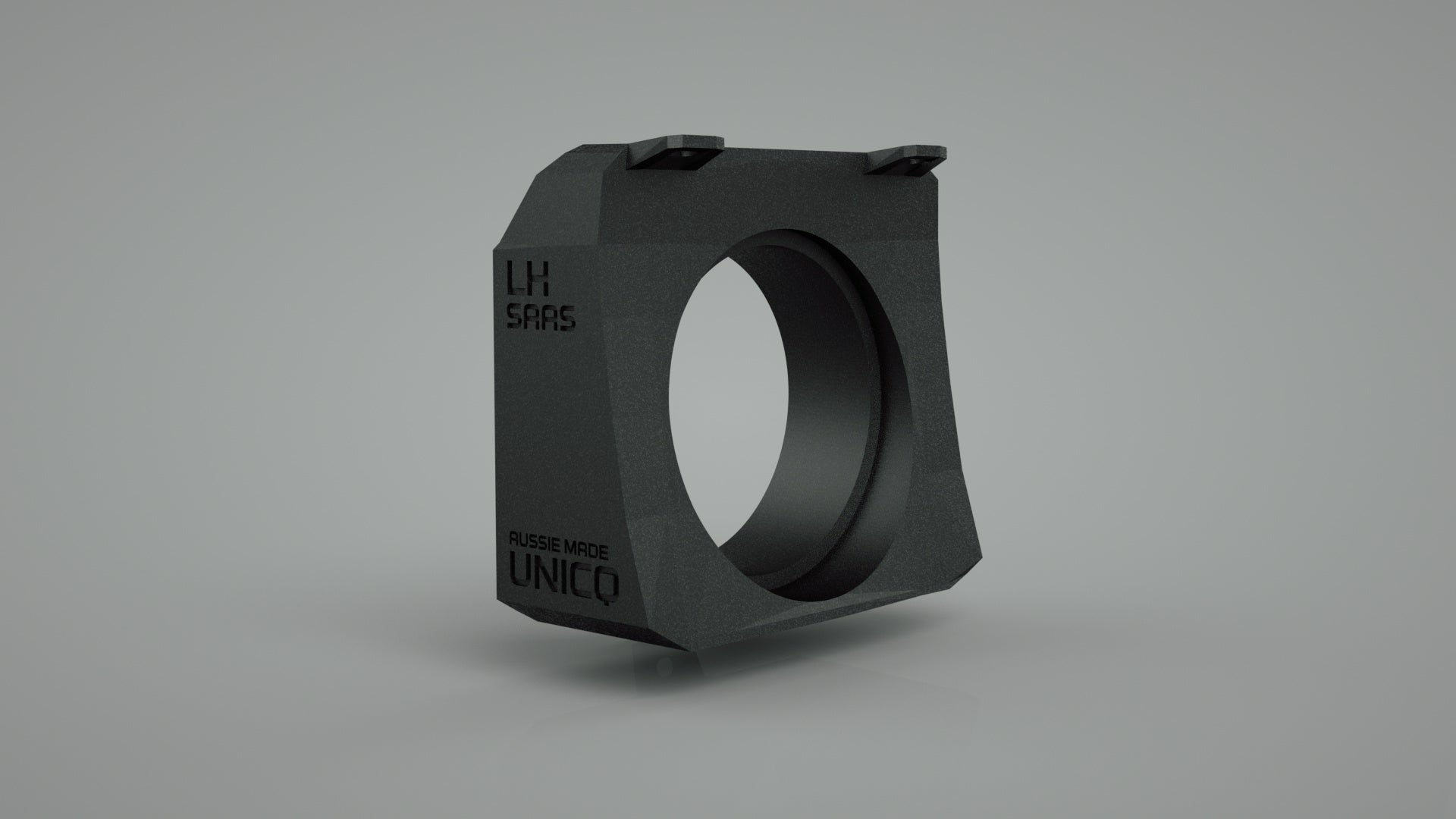

RH Gauge Adaptor 85mm 3-3/8Inch body hole with 97mm bezel diameter, 19mm Bezel Depth

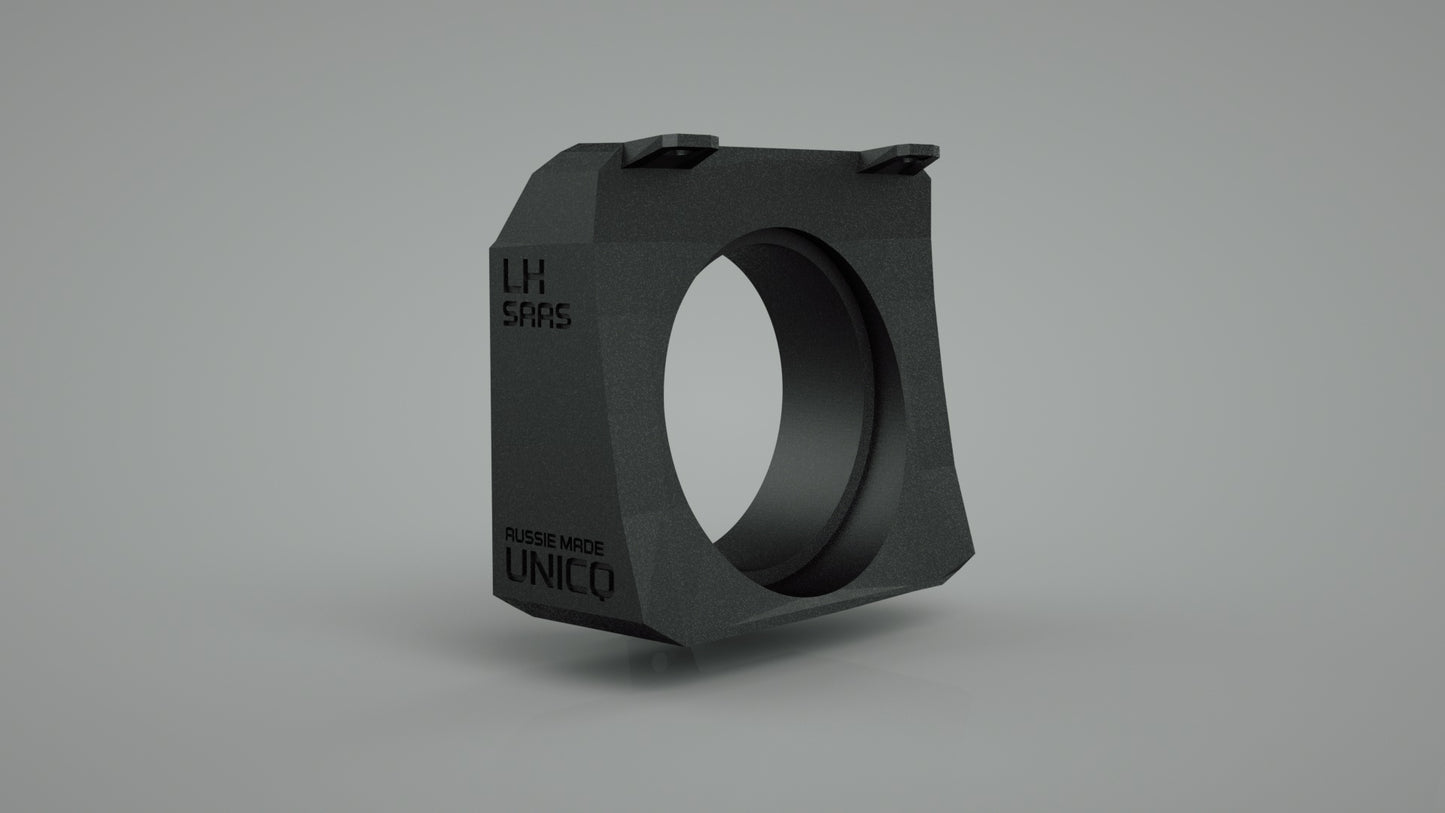

LH Gauge Adaptor 85mm 3-3/8Inch body hole with 97mm bezel diameter, 19mm Bezel Depth

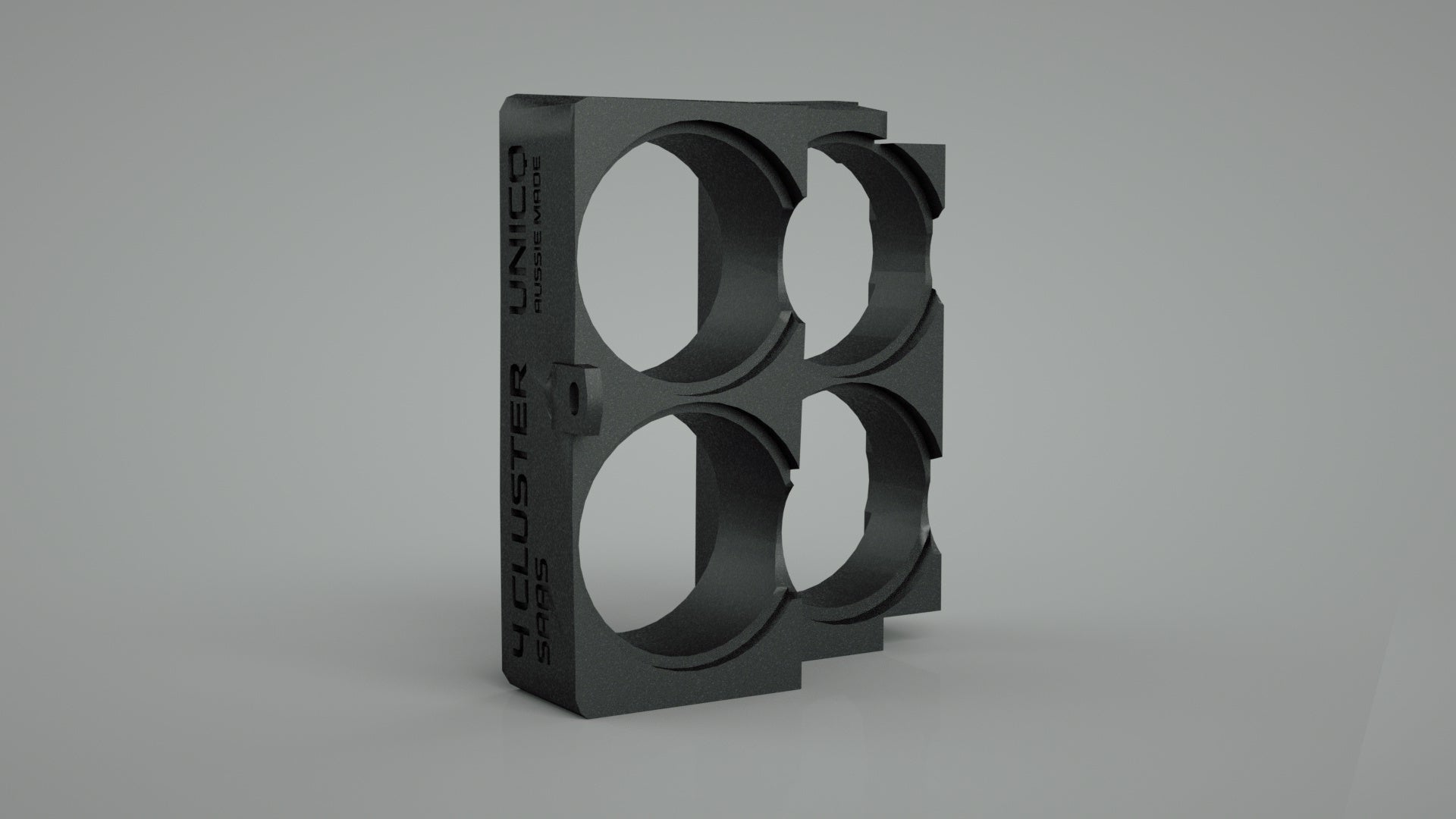

4 Gauge Cluster Housing Adaptor 52mm with 56.5mm Bezel diameter, 10mm Bezel Depth
4 Gauge Cluster Top and Bottom Gauge Alignment/Locking Brackets
Clock Gauge Adaptor 52mm 2 1/16inch 56.5mm Bezel Diameter, 10mm Bezel Depth
Clock Gauge Alignment/locking Bracket
NOTE: The AUTOMETER large Gauges will require cutting modifications to the facia support panels behind the gauge for clearance. This is supplied in the installation manual when you puchase the kit.
