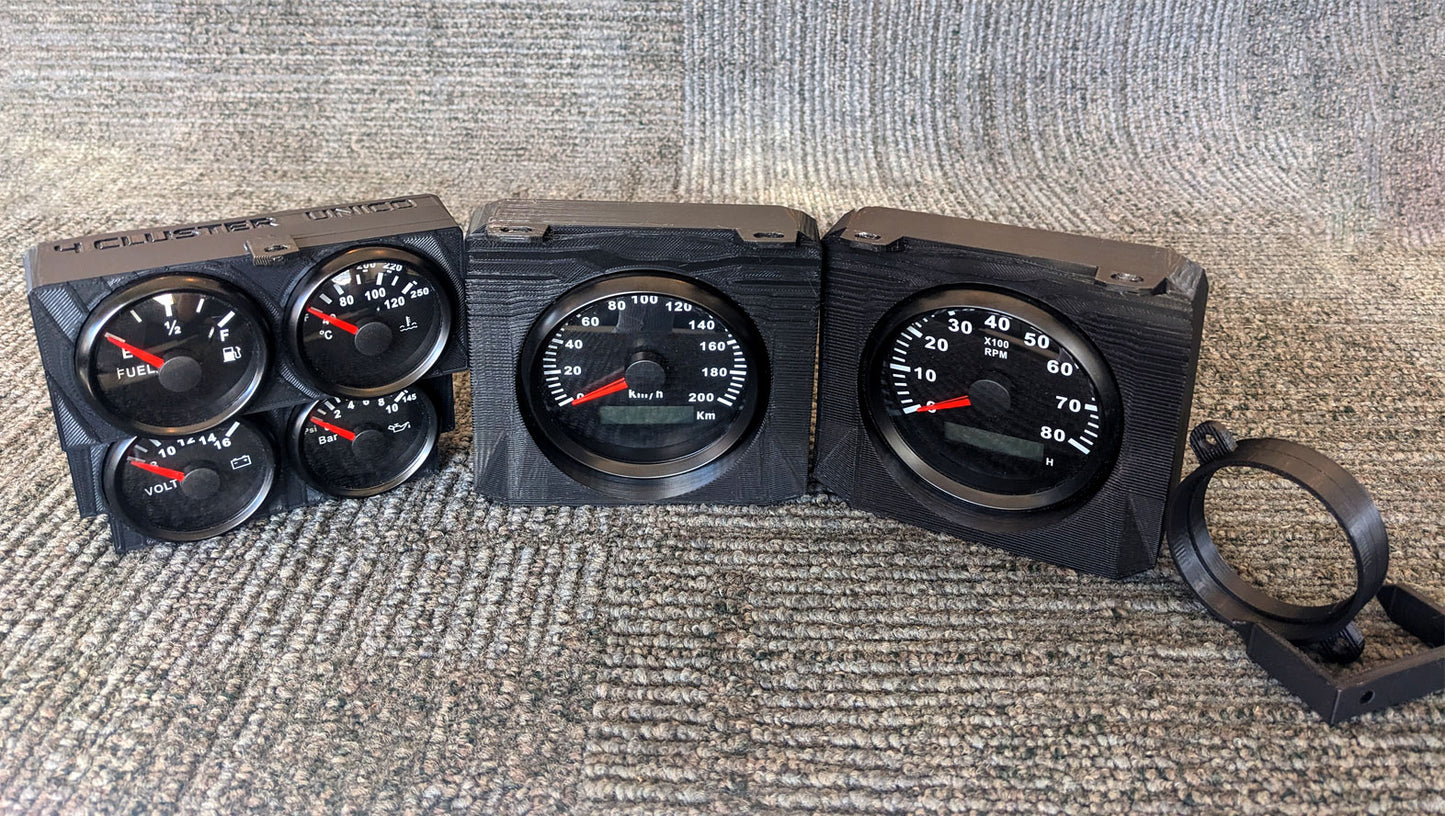

HZ GTS RETRO GAUGE adapter kit

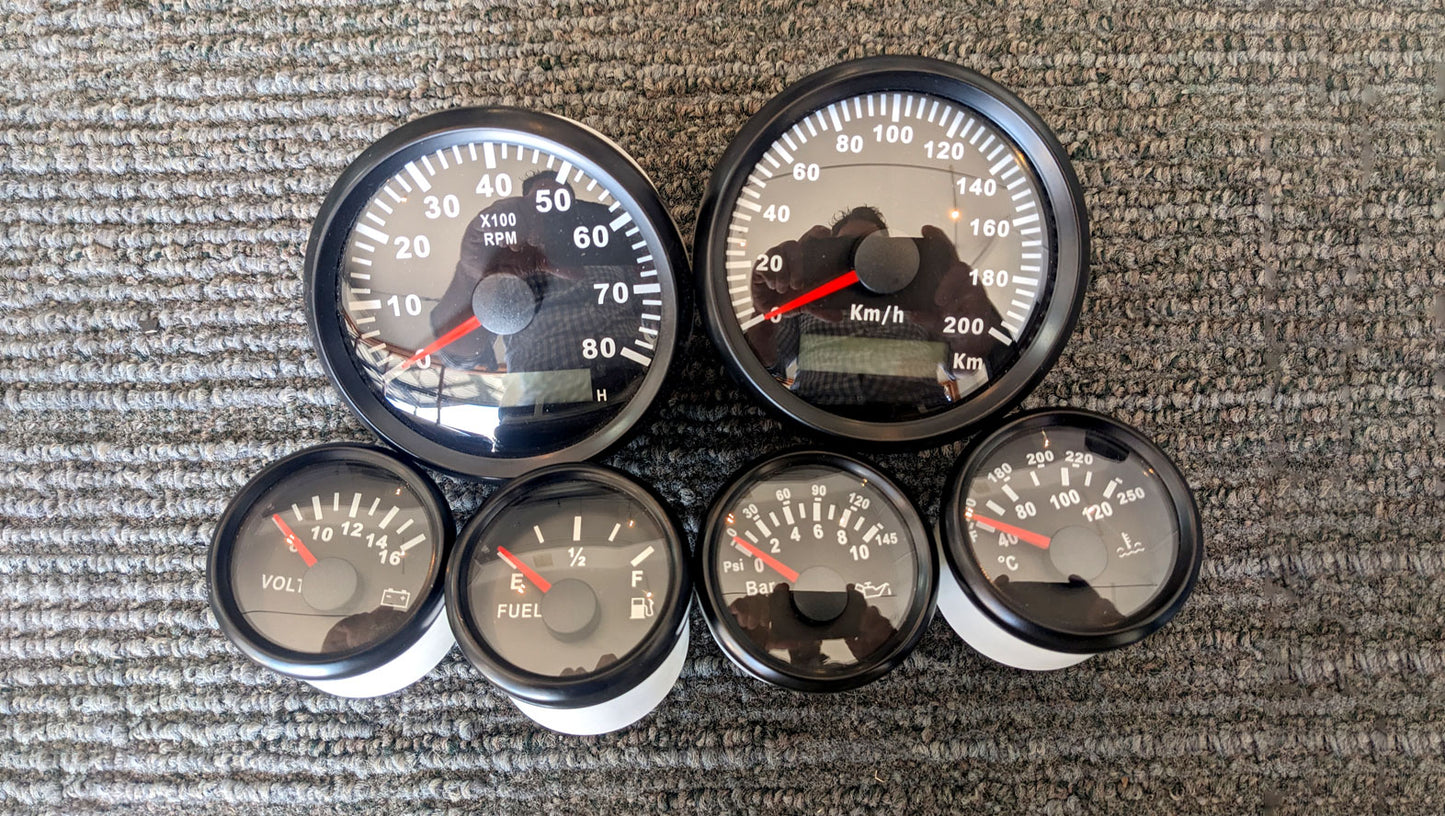

This gives you the full retro gauge adaptor kit to suit the original and aftermarket GTS Dash Facia. The ebay gauges are a VDO clone and offer great value and quality for the money.

To suit small Gauges 52mm body (2-1/16Inch) with 4mm bezel recess. 4 cluster Adaptor. Traditionally the Oil, Temp, Fuel and Battery in the original GTS cluster.

To suit the larger two Gauges 85mm body (3-3/8inch) with a 6mm bezel recess.

Designed to suit gauges with two screw thread mounts at rear as seen in the examples in the listings.

Not to say you can't use gauges with other screw mounts but you may need to cut support if you choose to use those as they protrude further out the rear.

These adaptors are designed specifically to fit these 2 screw thread gauges and to avoid having to cut the steel facia support bracket to get clearance.

A lot of design and fitment went into these gauges to ensure correct alignment for each gauge window in the GTS facia.

The bezel recess allows for flush mounting of the adaptors so no gaps are around each gauge on the facia. Also oval mount screw holes allow for final mm left and right alignment to get it spot on.

As a result each gauge has slightly different tolerances so must be used as per the left and right embossed labels on each gauge.

Visit online listing here at Unicq Parts

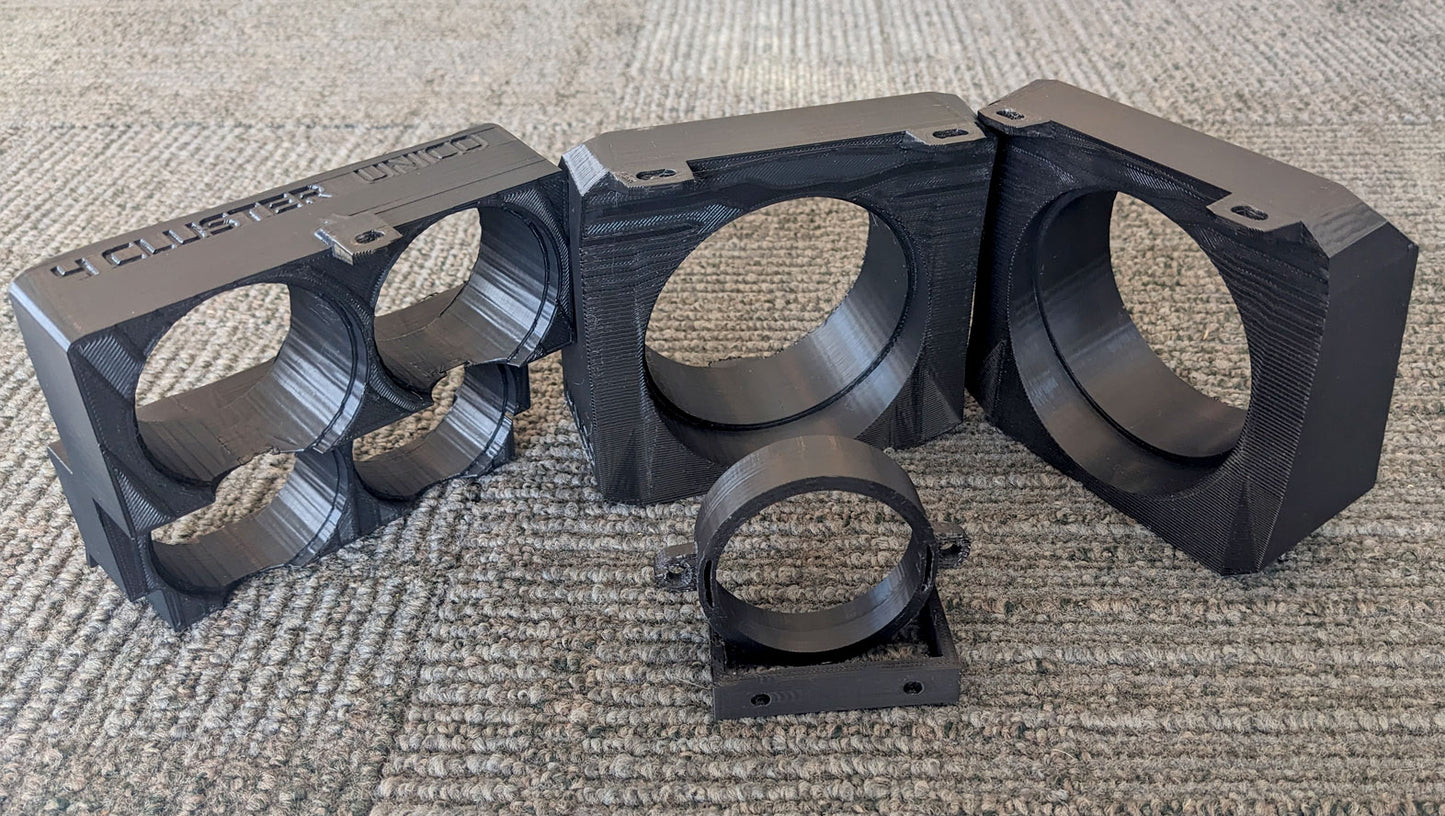

Included:

RH Gauge Adaptor 85mm 3-3/8Inch body hole with 92mm bezel recess

LH Gauge Adaptor 85mm 3-3/8Inch body hole with 92mm bezel recess

4 Gauge Cluster Housing Adaptor 52mm with 58mm Bezel recess

4 Gauge Cluster Top and Bottom Gauge Alignment/Locking Brackets

Clock Gauge Adaptor 52mm

Clock Gauge Alignment/locking Bracket
