Holden HZ GTS 4-Gauge Cluster Adaptor – VDO-Style

Holden HZ GTS 4-Gauge Cluster Adaptor – VDO-Style

Mount compatible aftermarket gauges in the Holden HZ GTS four-gauge cluster position. Check body, bezel and rear bracket dimensions before ordering.

4 Gauge Cluster for Holden HZ-WB facia support panel.

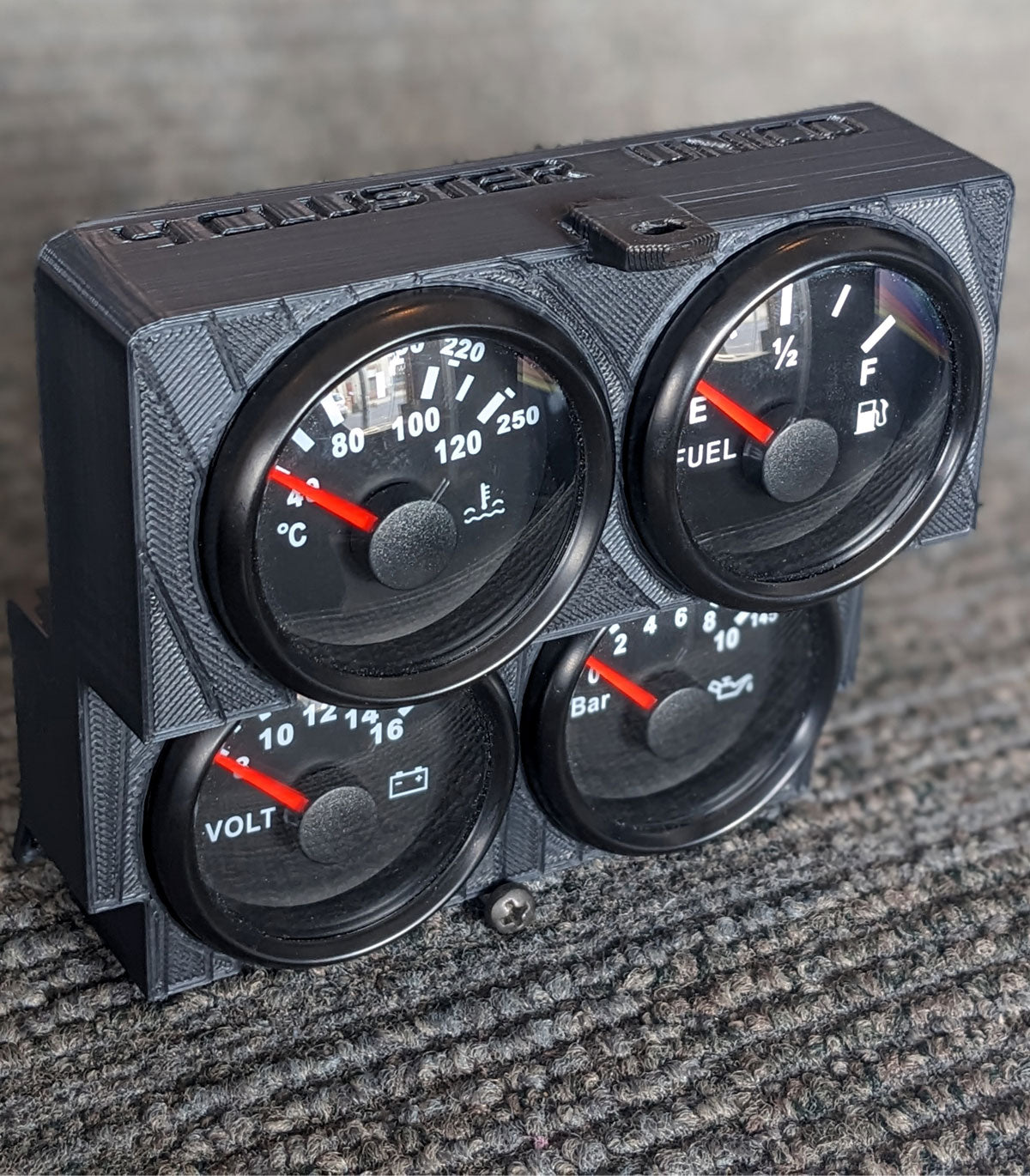

Traditionally used to house the Flexdrive 4 gauge Oil, Temp, Fuel and Battery in the HZ GTS Dash.

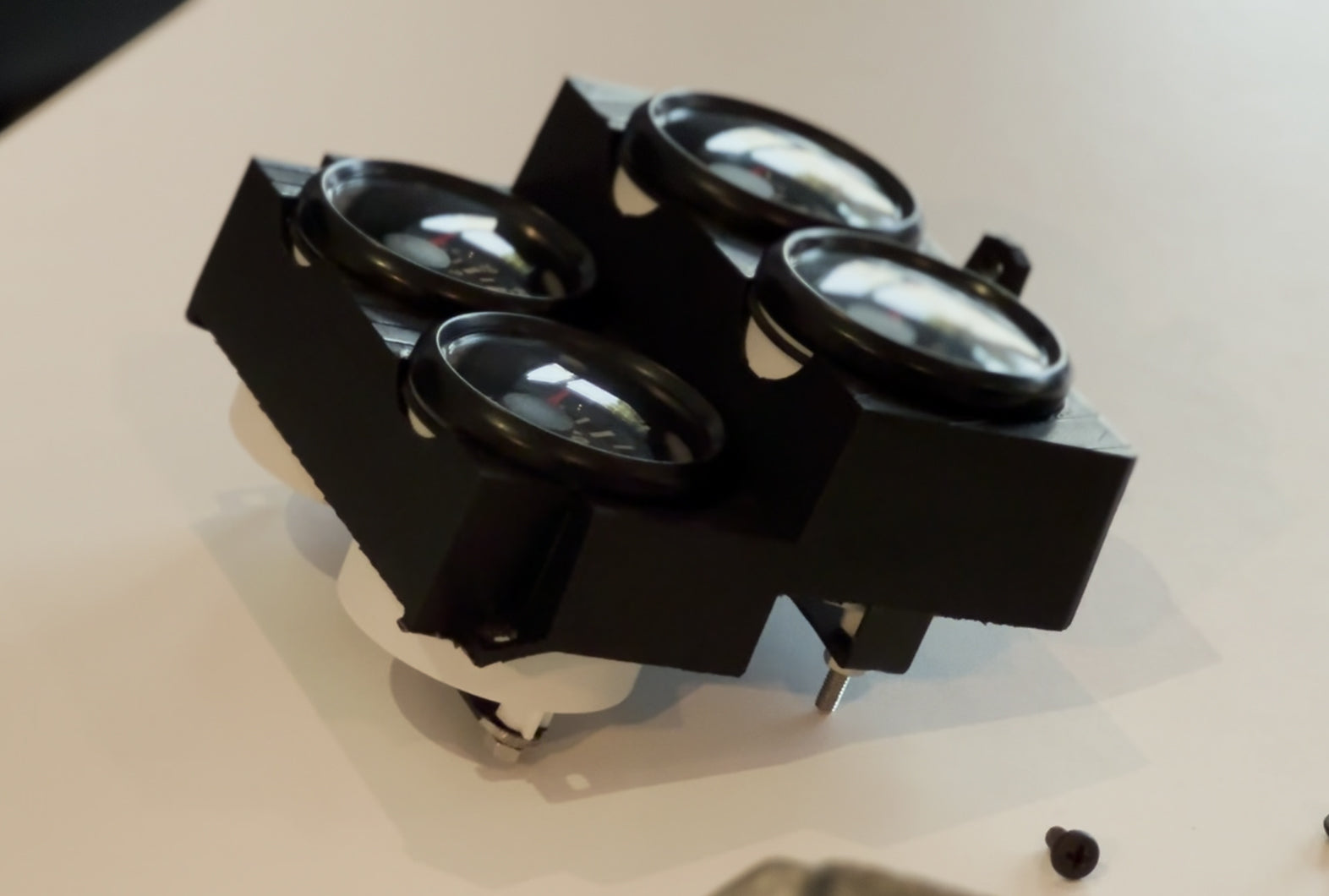

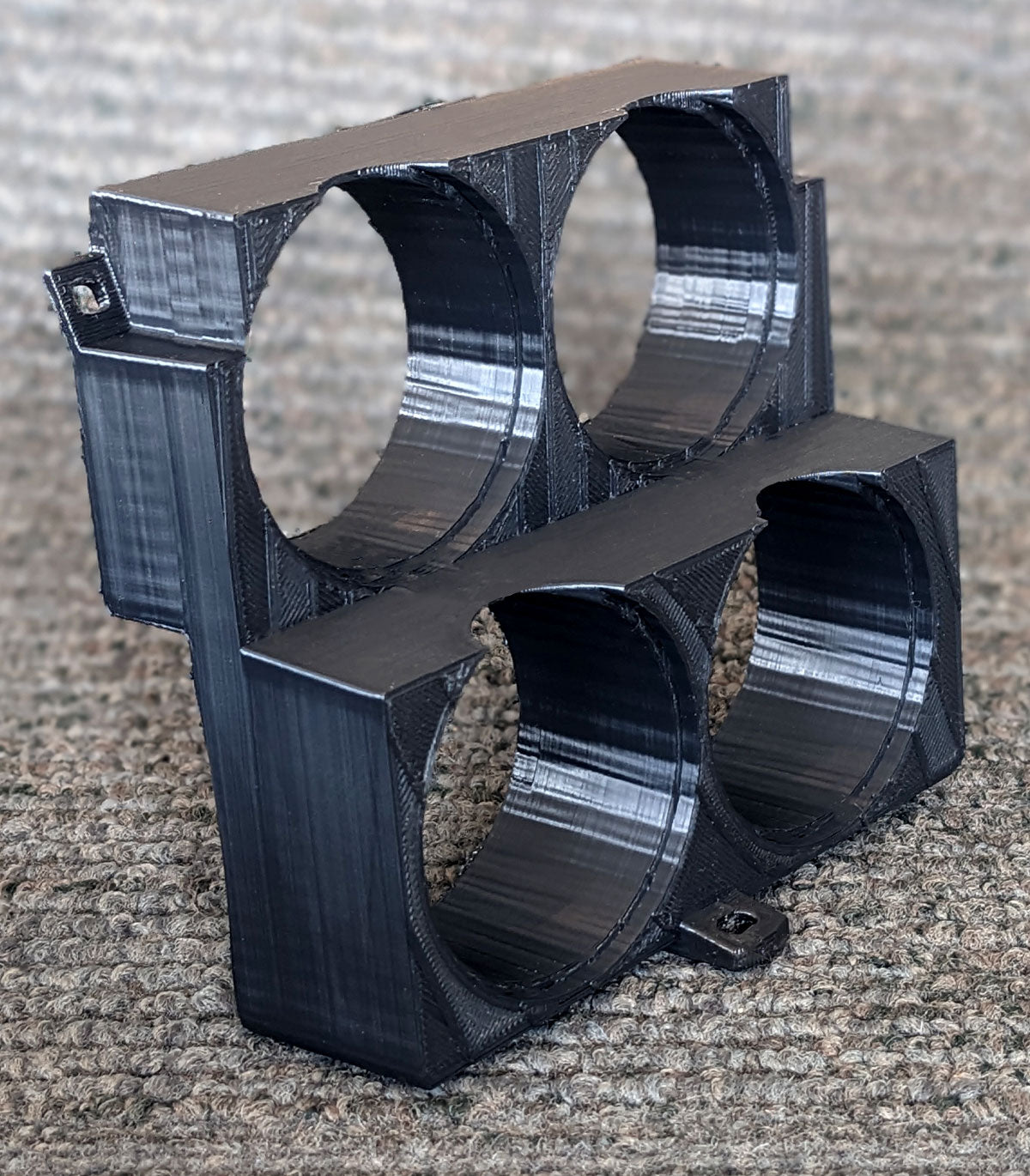

Designed from original GTS 4 Gauge cluster and re-engineered to precisely fit the 52mm Gauge bodies with a 4mm Bezel embedded into the cluster body. Total length of the gauge is also 52mm

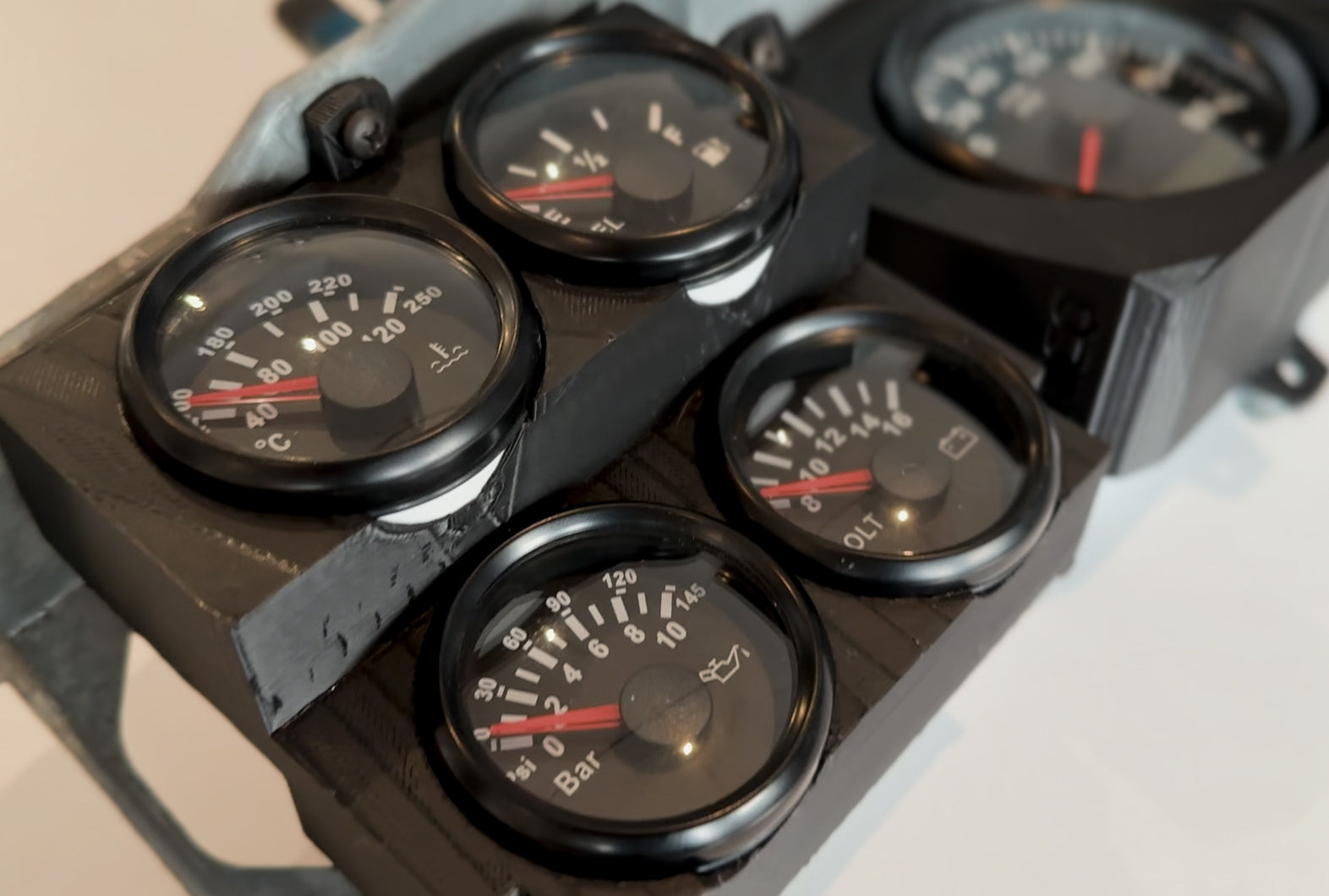

The total width being 55mm at the face including the bezel and a bezel depth of 8mm which is moulded into the cluster frame. This allows the gauges to sit flush with the mounting face so the facia pod windows can sit around the gauge without hitting the glass of the gauge.

Printed in ABS + it will withstand cabin temperatures easily and maintain structural integrity for years to come.

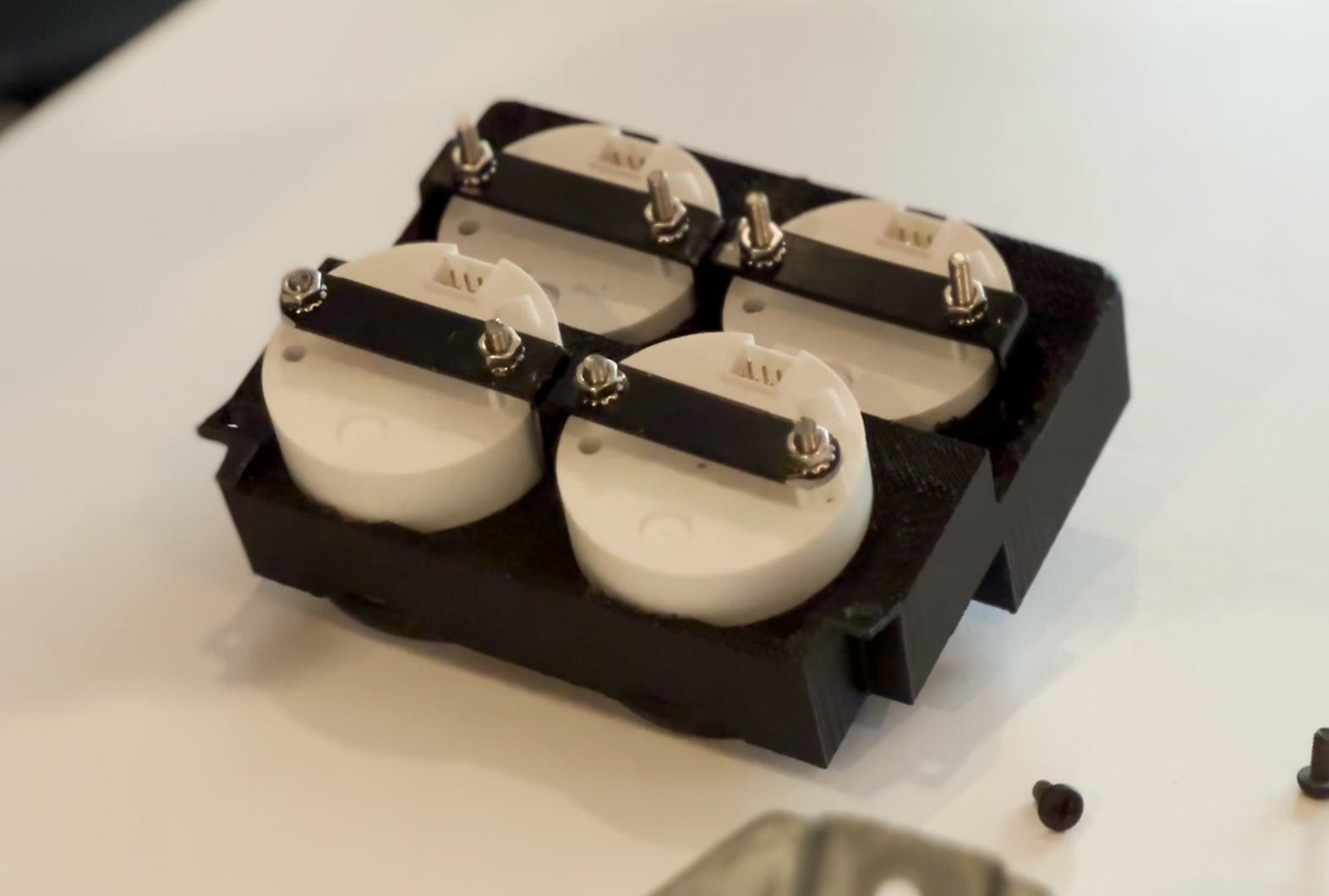

Back comes with mount slots for metal gauge bracket so it locks in securely and straight.

Only for use with Gauge sets that have the compatible metal bracket at the rear, this will ensure you clear the metal dash support bracket behind the gauges without requirement to cut for clearance.

Included:

4 Gauge Cluster Housing Adaptor 52mm with 58mm Bezel diameter, 6mm Bezel Depth

4 Gauge Cluster Top and Bottom Gauge Alignment/Locking Brackets

NOTE: Will require minor shaving modifications to screw mounts to allow gauge bodies to fit inside facia support panel.

Explore VDO-style gauge adaptors for the HZ GTS dash.
