SAAS MUSCLE SERIES 3 HZ GTS RETRO GAUGE ADAPTOR KIT
Although the Muscle series kit 3 will fit the series 1 and 2 adaptors we have a seperate listing as they don't require the bracket system we supply with the 1,2 kits. This is due to the diagonal mounting system now being implemented on the 52mm gauges as well as the large guages.

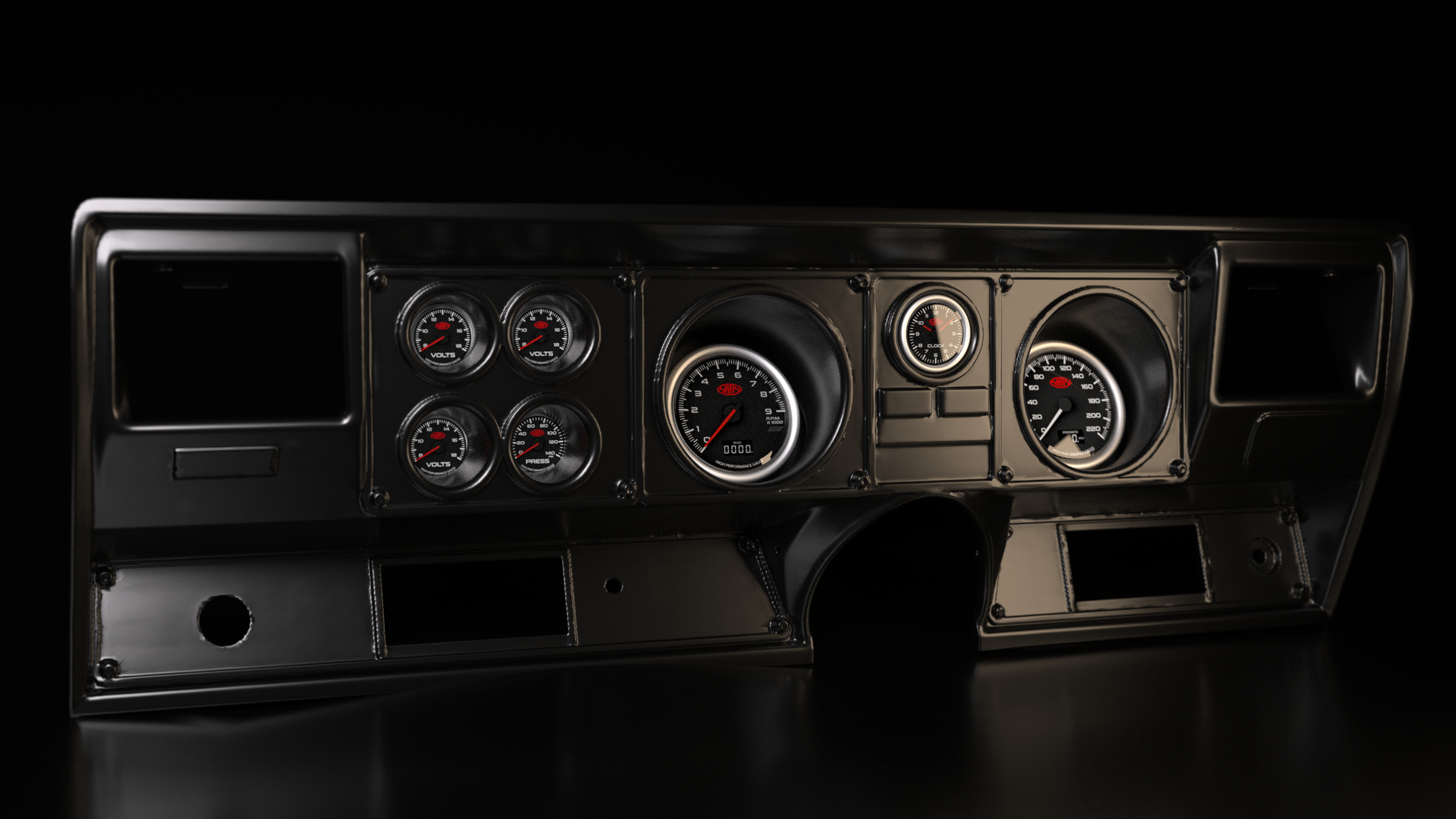

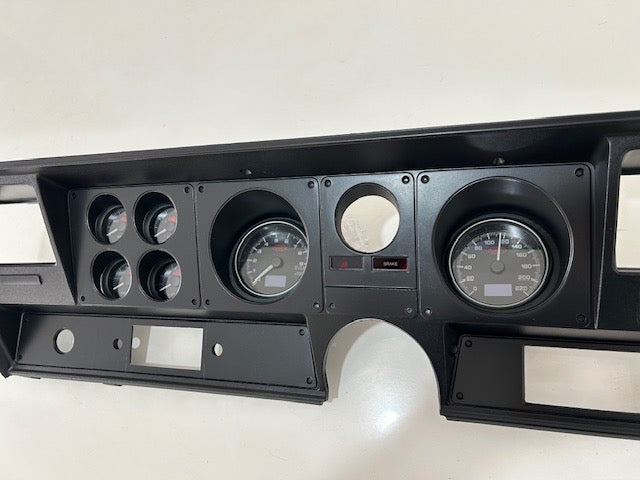

This gives you the full retro gauge adaptor kit to suit the original and aftermarket GTS Dash Facia.
To suit small Gauges 52mm body (2Inch) with 6mm bezel recess. 4 cluster Adaptor. Traditionally the Oil, Temp, Fuel and Battery in the original GTS cluster.
To suit the larger two Gauges 80mm body (3-1/8inch) with a 9mm bezel recess.
Designed to suit gauges with two diagonal screw thread mounts at rear.
A lot of design and fitment went into these gauges to ensure correct alignment for each gauge window in the GTS facia.
The bezel recess allows for flush mounting of the adaptors so no gaps are around each gauge on the facia. Also oval mount screw holes allow for final mm left and right alignment to get it spot on.
As a result each gauge has slightly different tolerances so must be used as per the left and right embossed labels on each gauge.
Visit online listing here at Unicq Parts

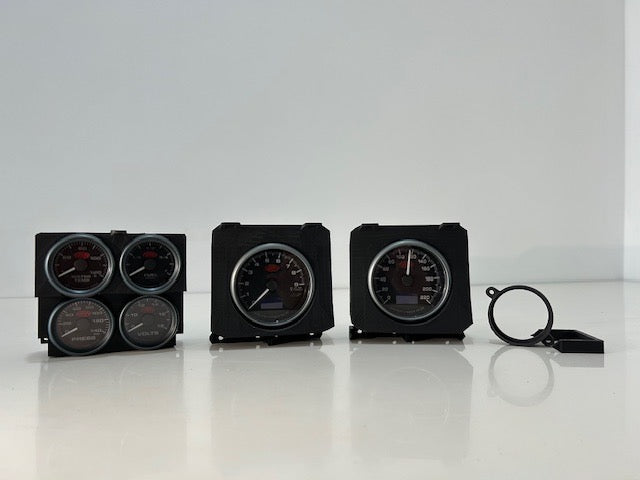

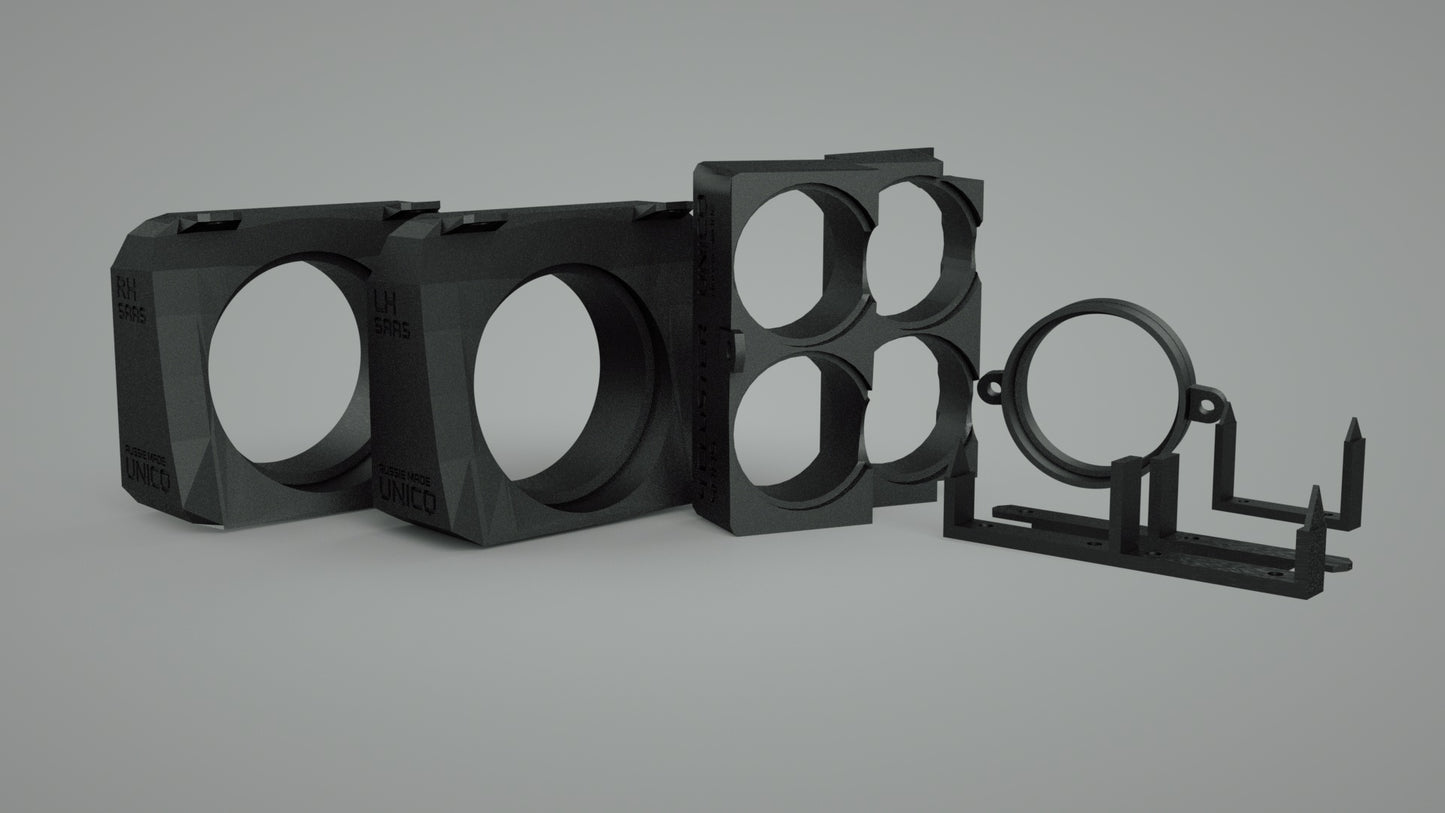

Included:

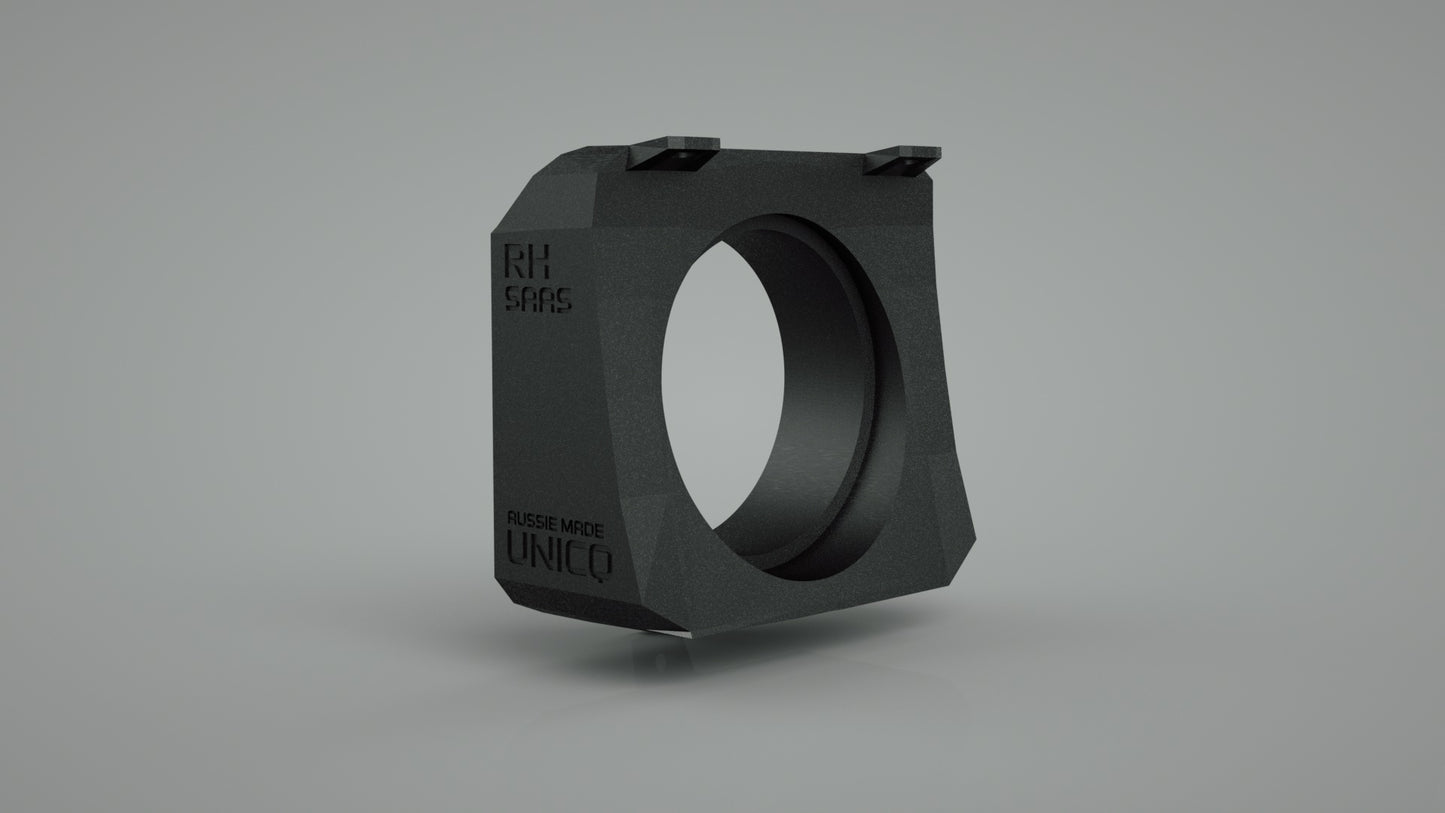

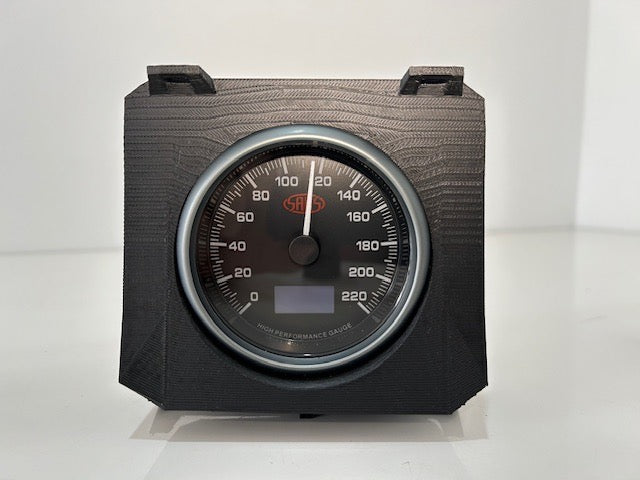

RH Gauge Adaptor 80mm 3-3/8Inch body hole with 89mm bezel recess

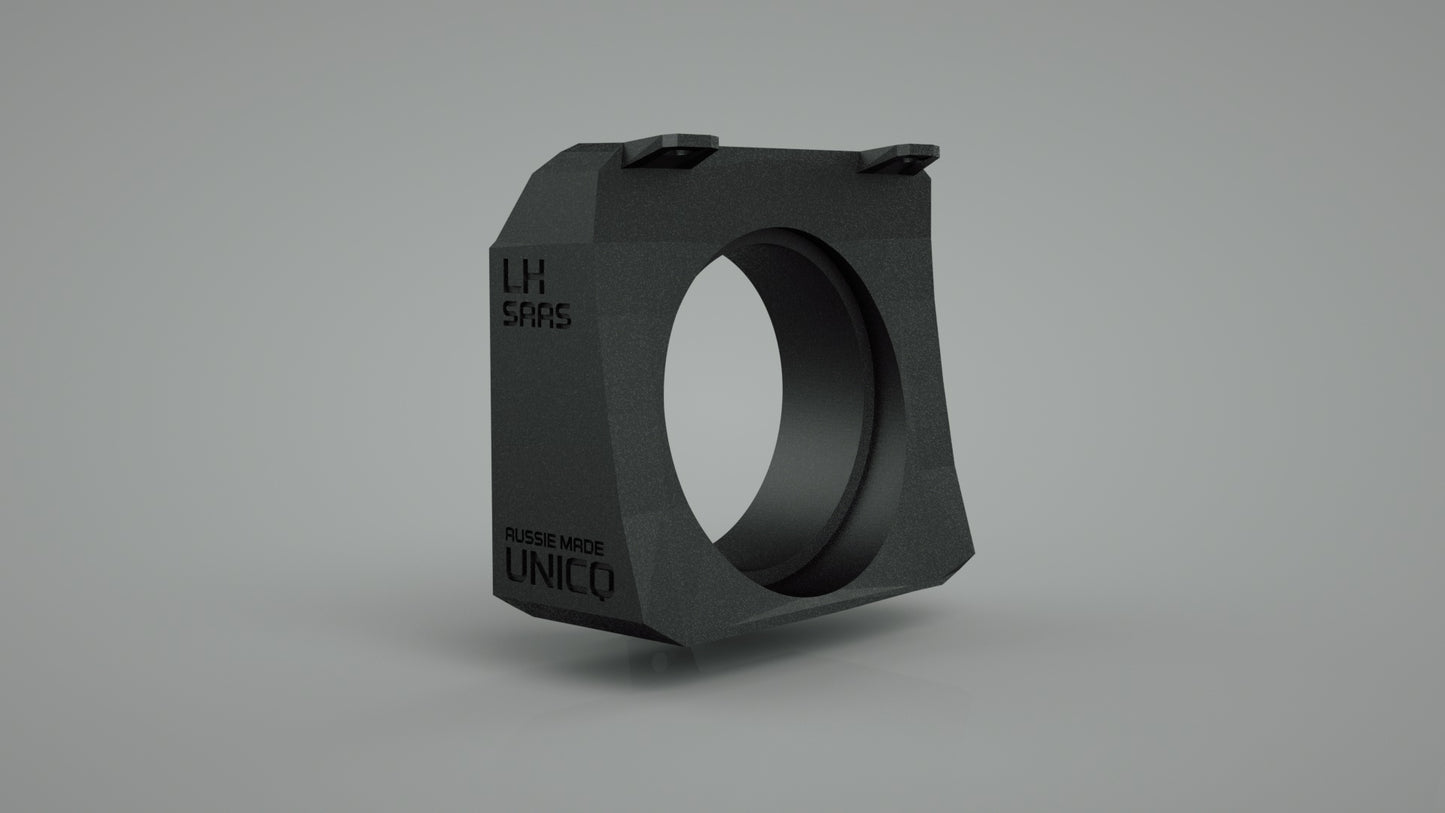

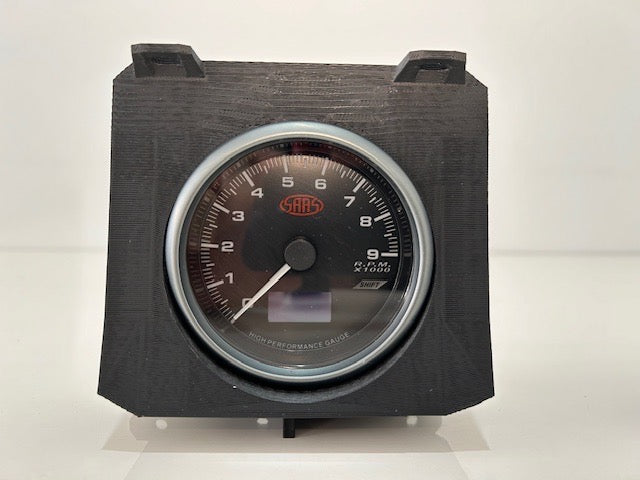

LH Gauge Adaptor 80mm 3-3/8Inch body hole with 89mm bezel recess

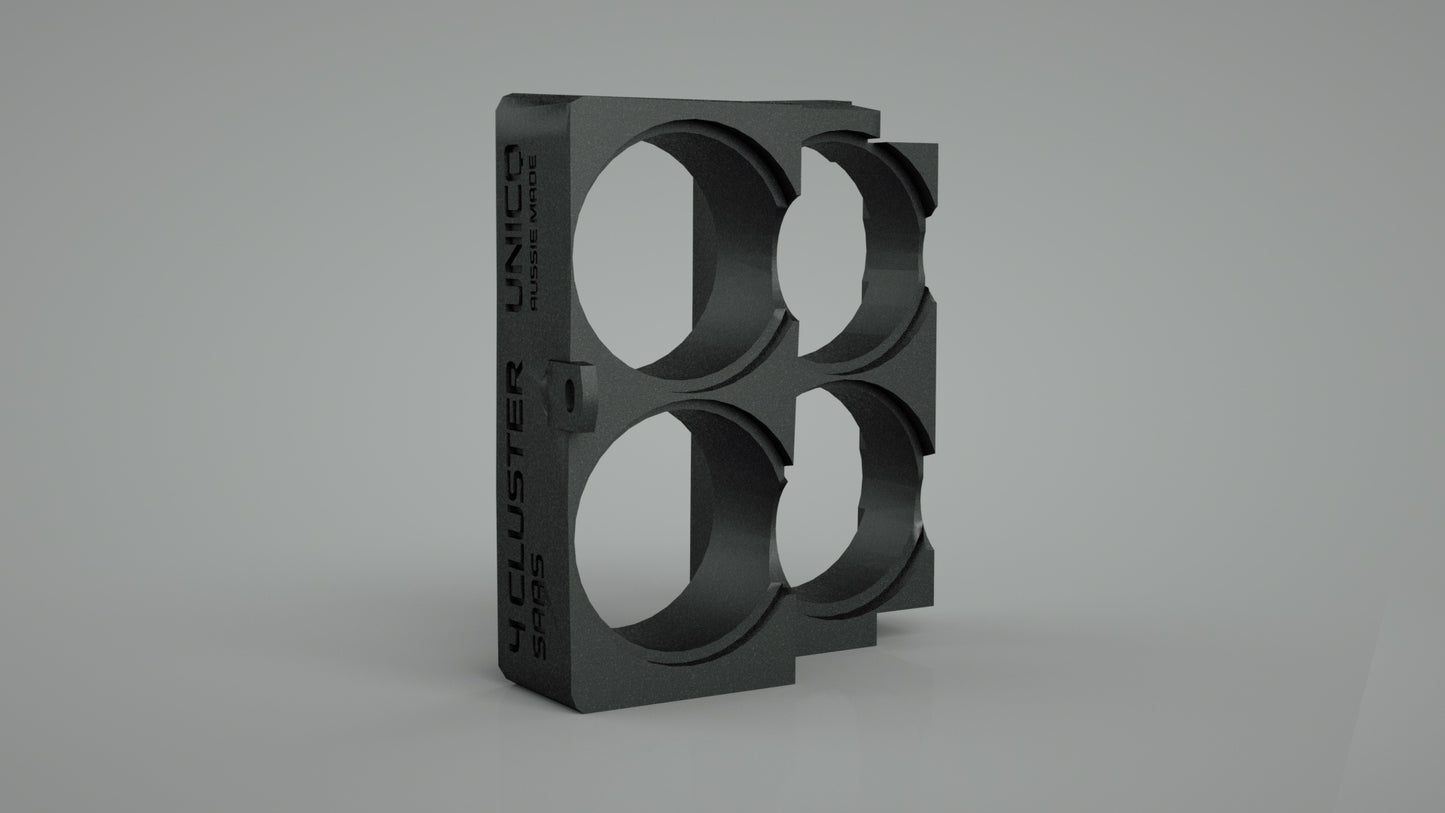

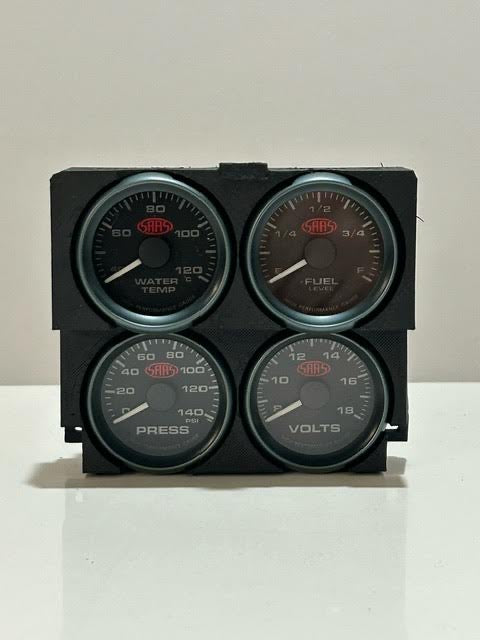

4 Gauge Cluster Housing Adaptor 52mm with 58mm Bezel recess
4 Gauge Cluster Top and Bottom Gauge Alignment/Locking Brackets
Clock Gauge Adaptor 52mm
Clock Gauge Alignment/locking Bracket
